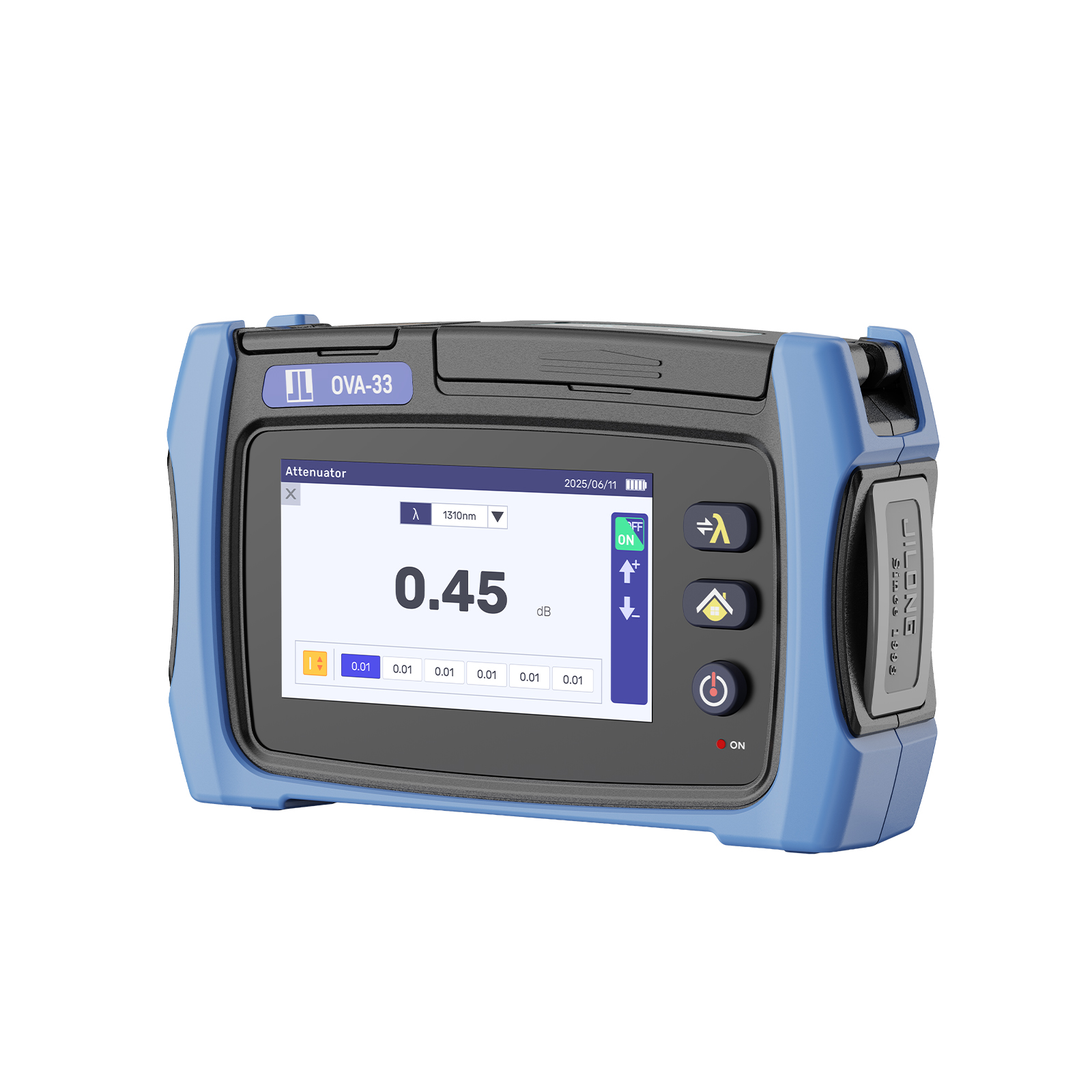

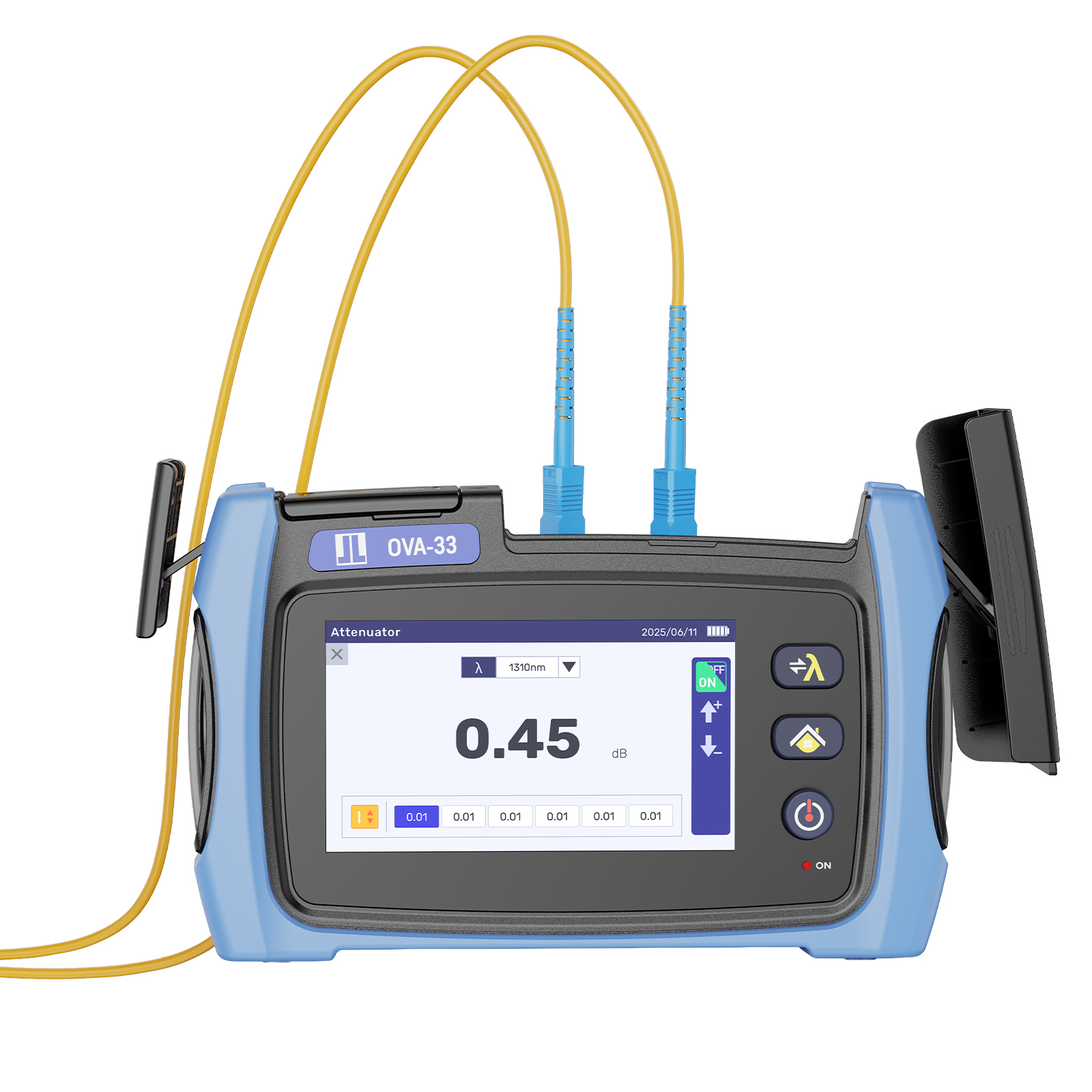

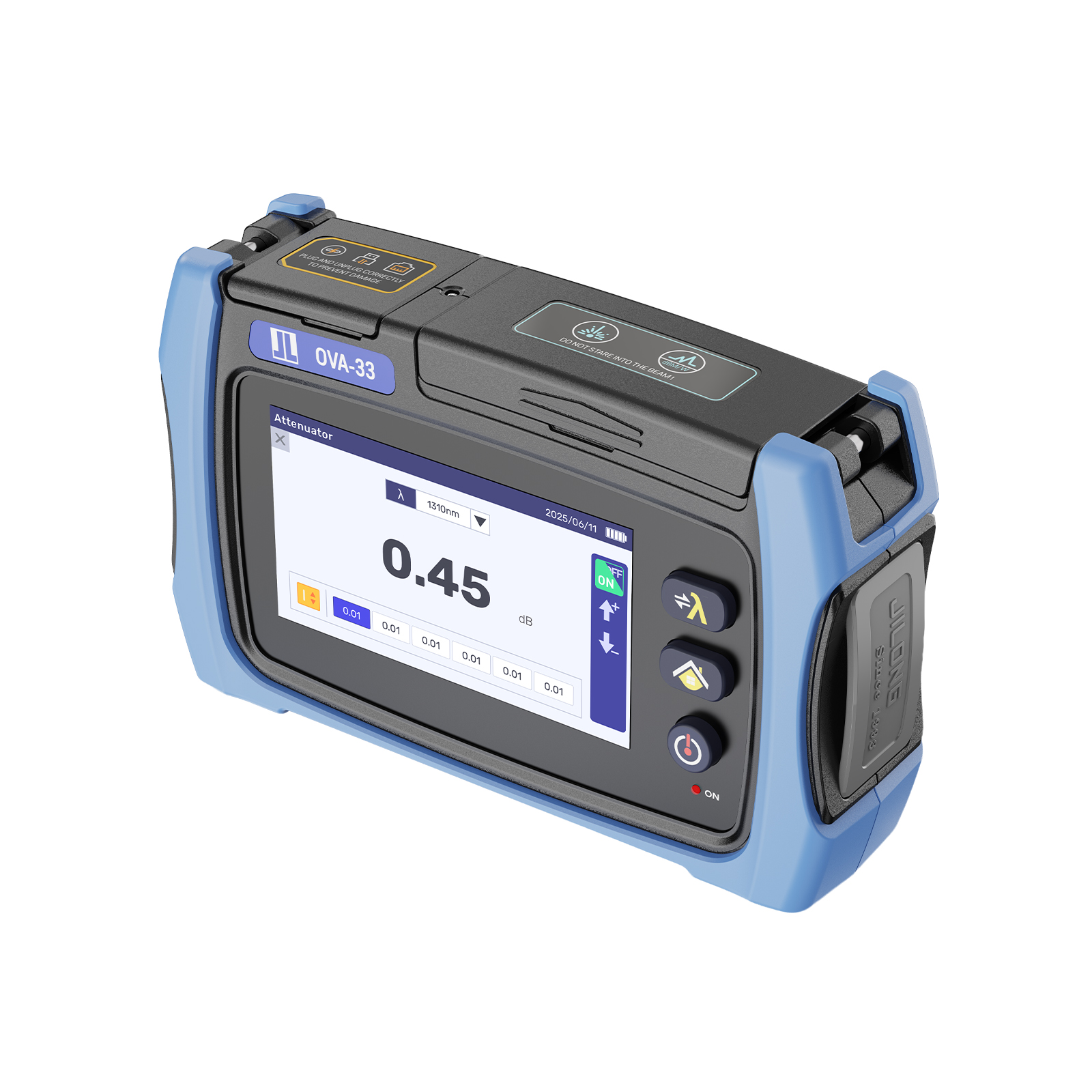

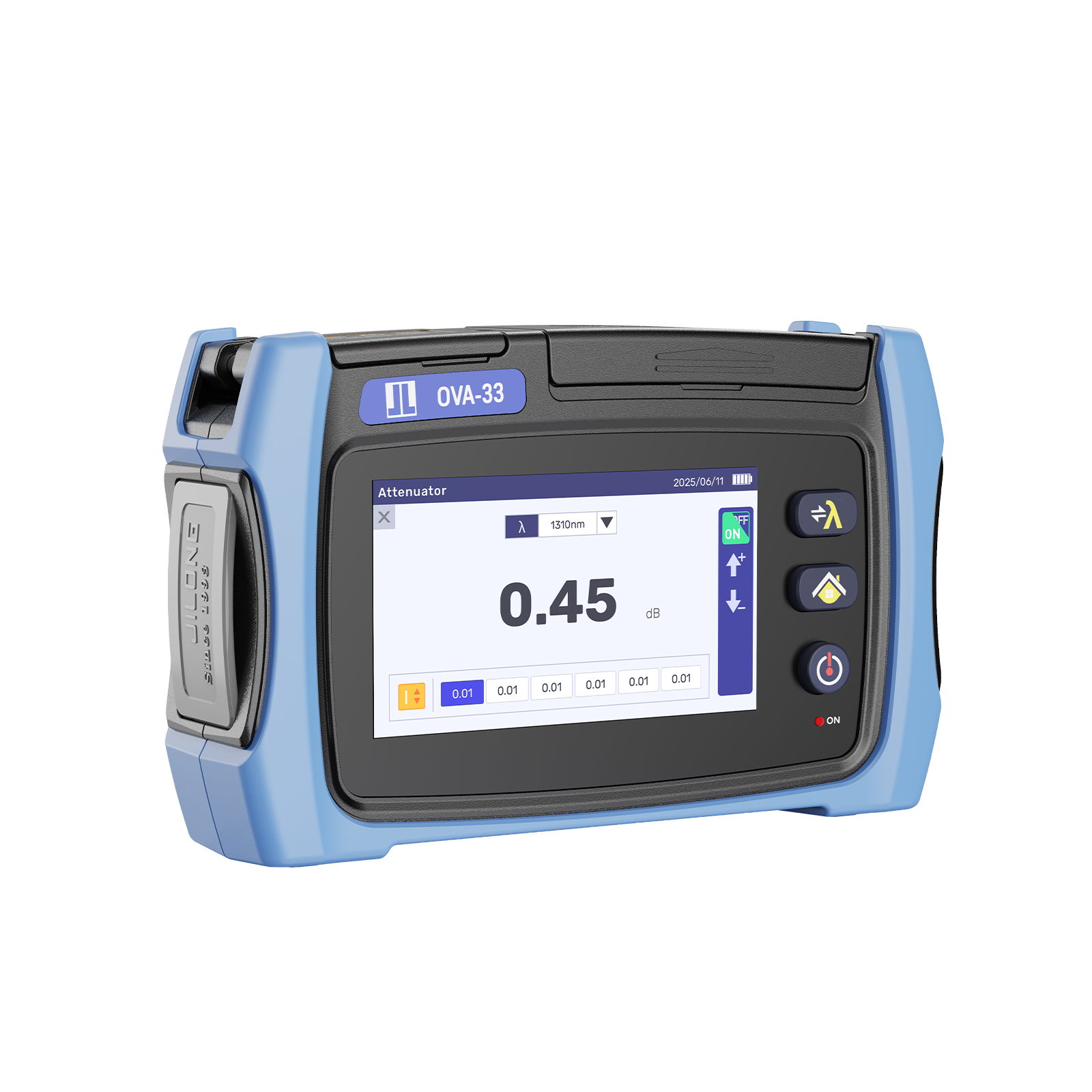

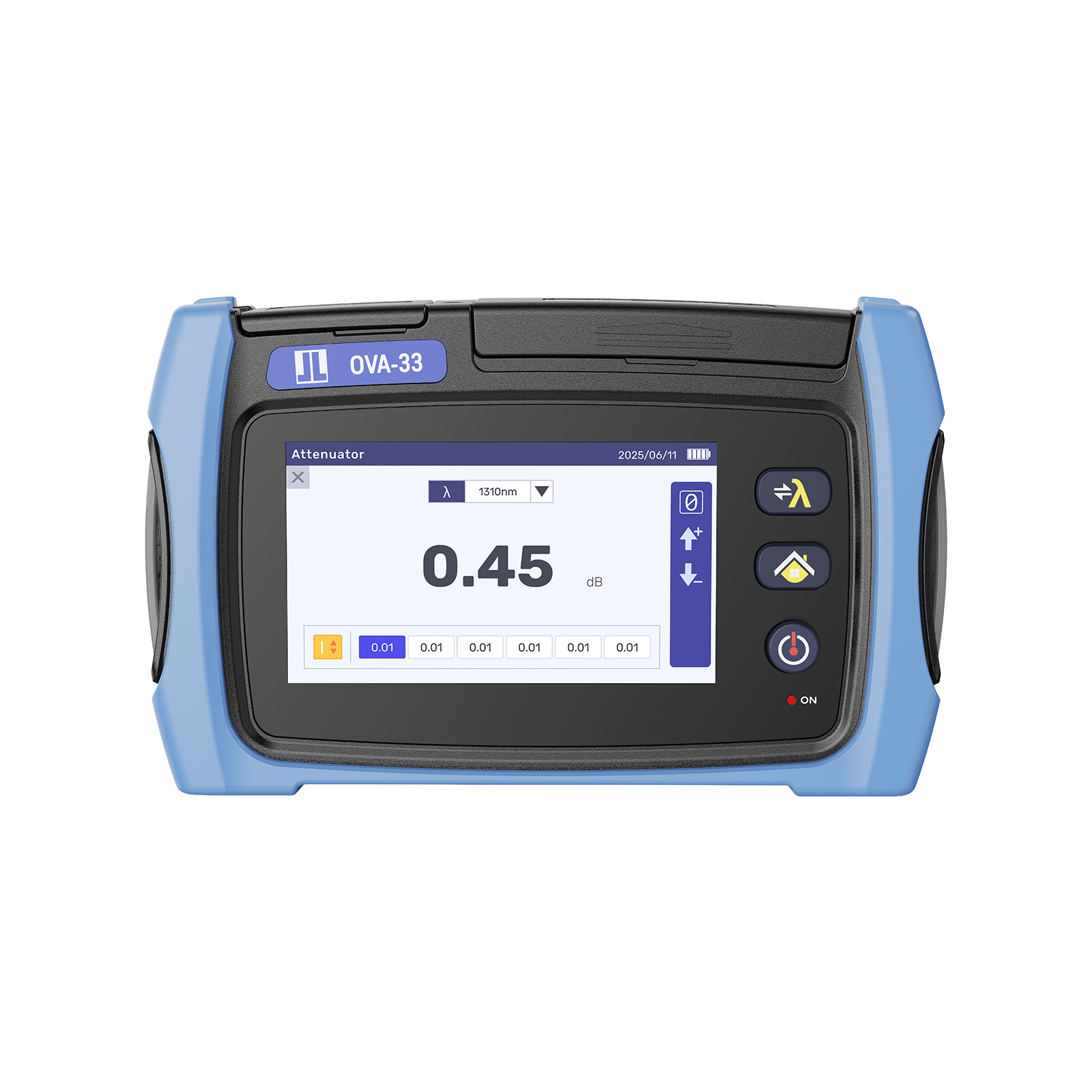

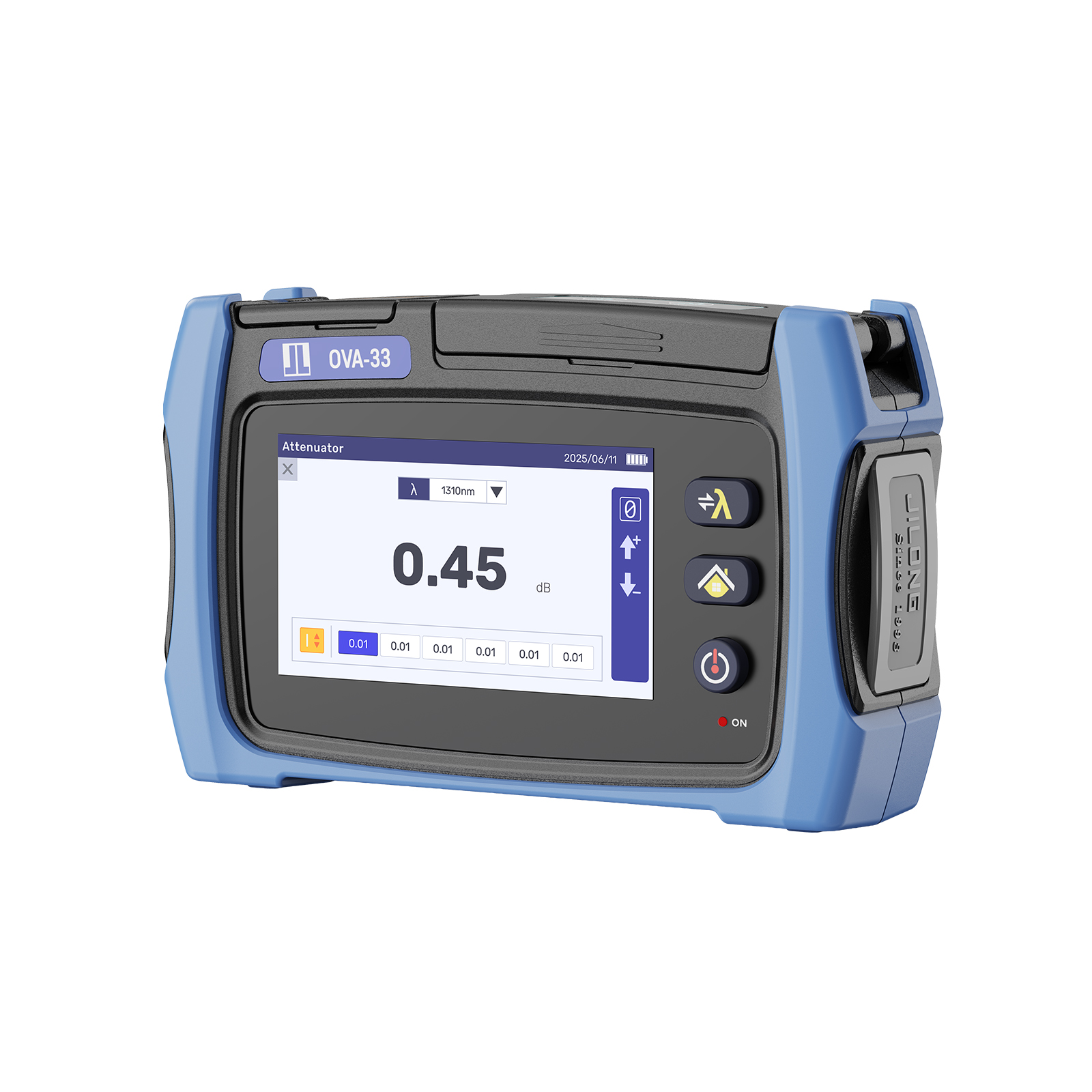

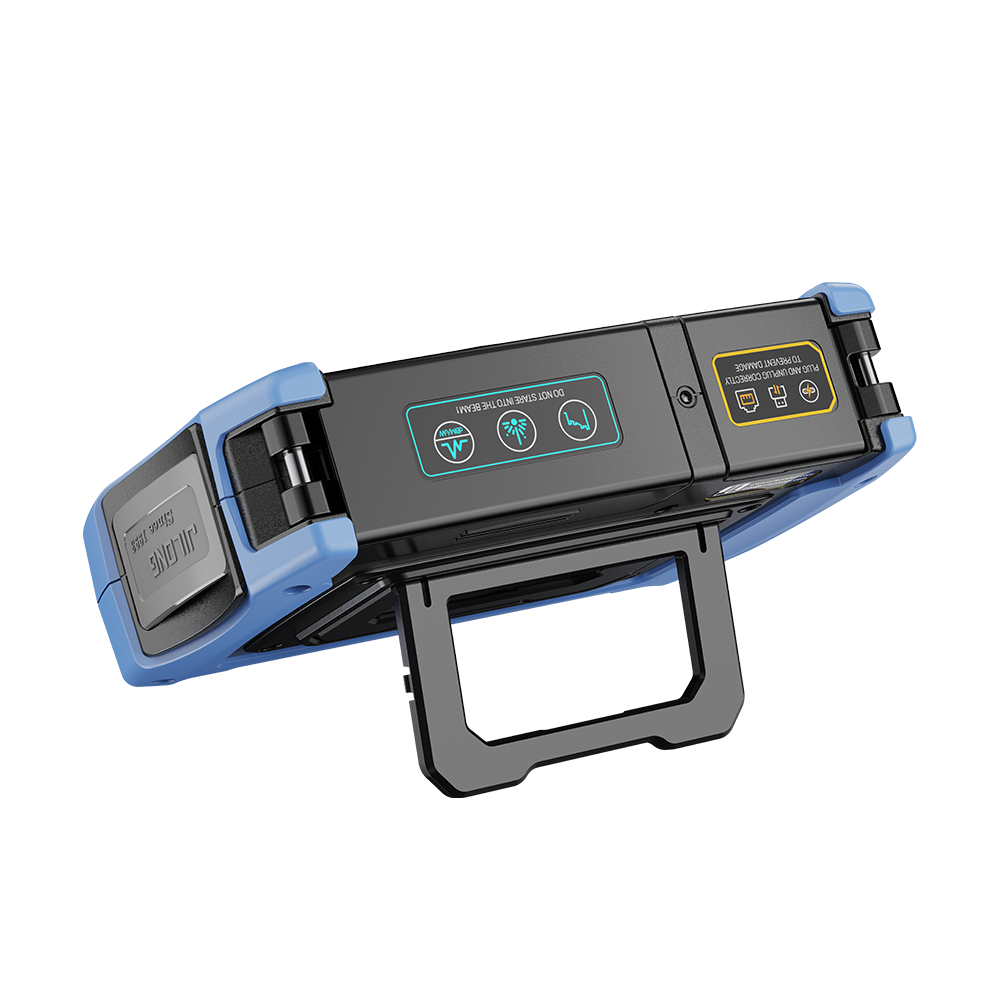

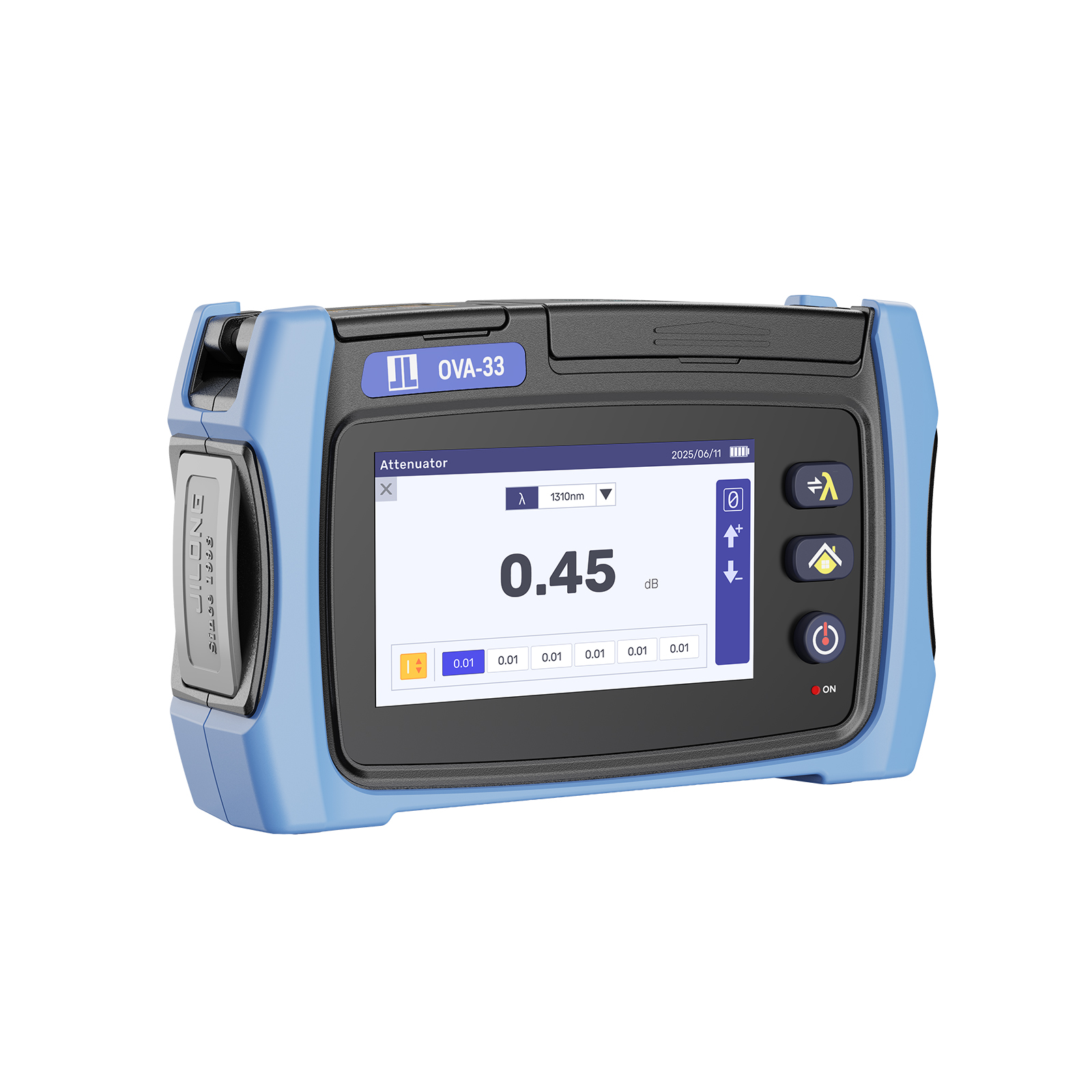

OVA-33 Optical Attenuator

OVA-33 Optical Attenuator OVA-33 Optical Attenuator OVA-33 Optical Attenuator OVA-33 Optical Attenuator OVA-33 Optical Attenuator OVA-33 Optical Attenuator OVA-33 Optical Attenuator OVA-33 Optical Attenuator OVA-33 Optical Attenuator OVA-33 Optical Attenuator
OVA-33 Optical Attenuator OVA-33 Optical Attenuator OVA-33 Optical Attenuator OVA-33 Optical Attenuator OVA-33 Optical Attenuator OVA-33 Optical Attenuator OVA-33 Optical Attenuator OVA-33 Optical Attenuator OVA-33 Optical Attenuator OVA-33 Optical Attenuator
Manual Catalogue Tutorials VR
Core features

4.3-inch Touch Screen

RJ45:Wire sequencing

5000mAh High-capacity Battery

Handheld, Compact and Light

Customizable Calibration Wavelengths

Lighting

Recommended Products
    No data
  • KL-6100 FTTx OTDR
  • 300T 6-Motor G654E Trunk Fusion Splicer
  • FIP-600V Fiber Optic Connector Inspection System
  • OLS-22 Mini Multi-functional Optical Light Source
OVA-33 Optical Attenuator
RequestRequest a quote consultOnline consultation Telephone+86 4008836695
Features

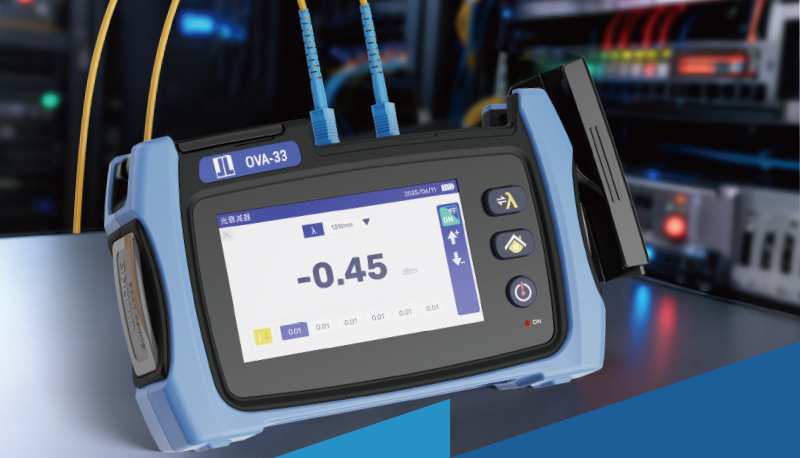

  • 1.jpg
    OVA-33 Optical Attenuator
    ● 4.3-inch Touch Screen
    ● RJ45:Wire sequencing
    ● 5000mAh High-capacity Battery

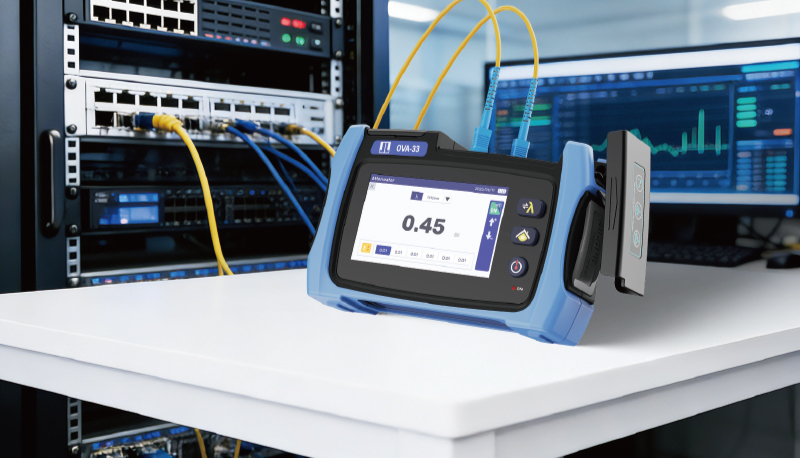

  • 2.jpg
    Maximum Attenuation
    ● Maximum Attenuation 40dB/80dB
    ● Attenuation Resolution 0.01dB
  • 3.jpg

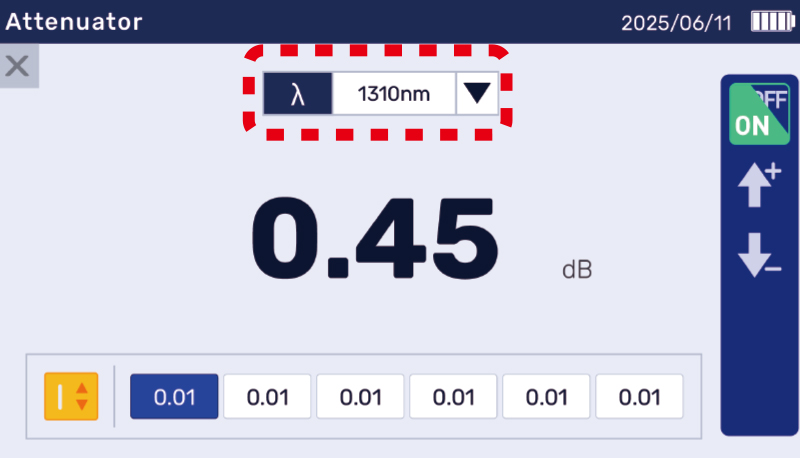

    Calibration Wavelength
    Calibration Wavelength 1310/1550（nm）Customization Available
  • 4.jpg

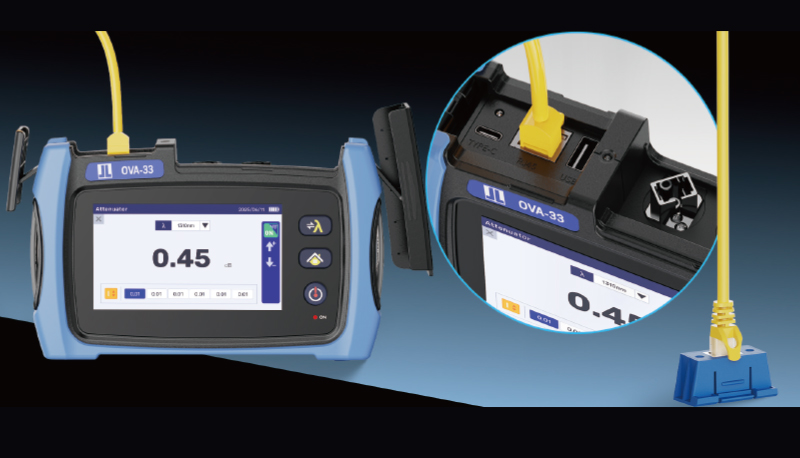

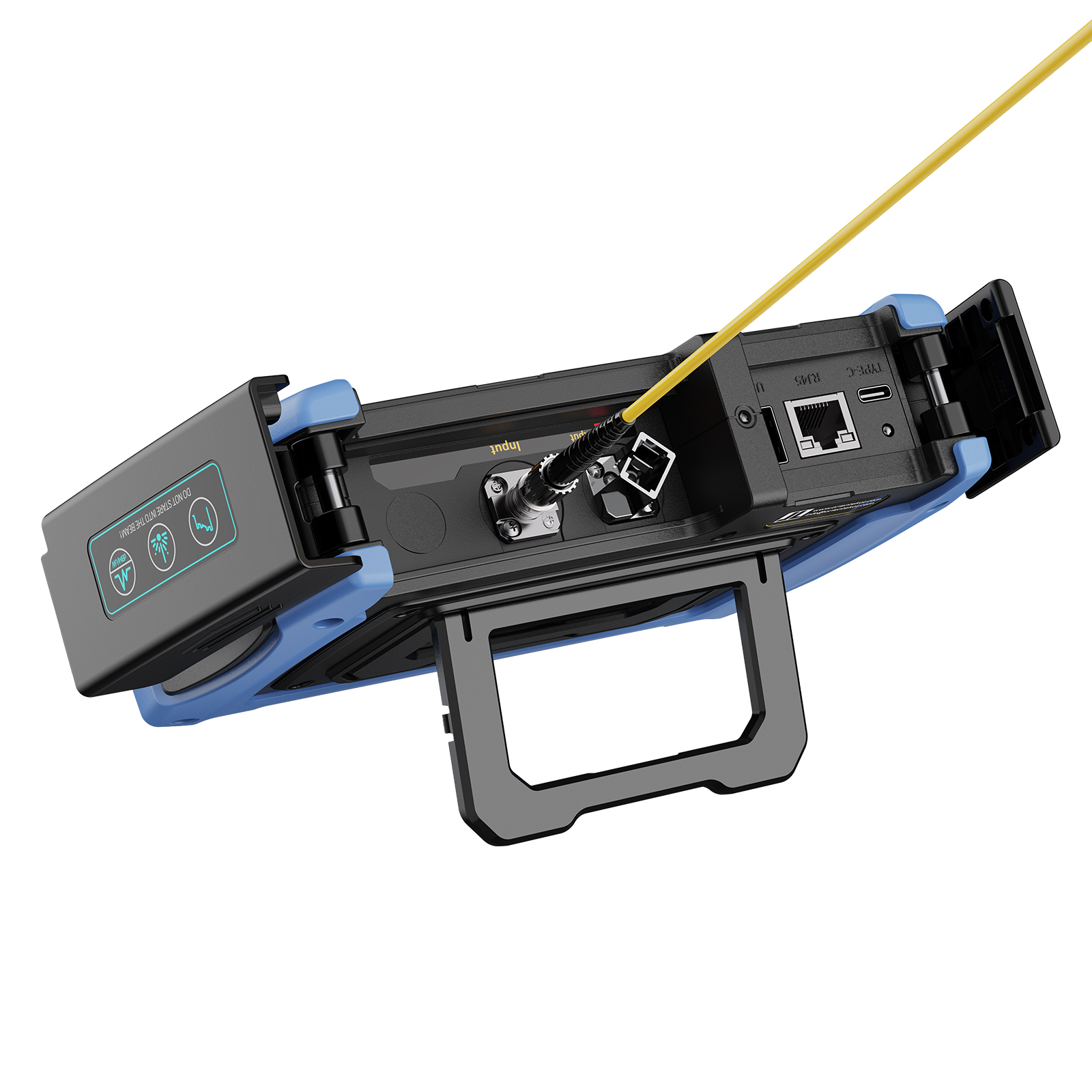

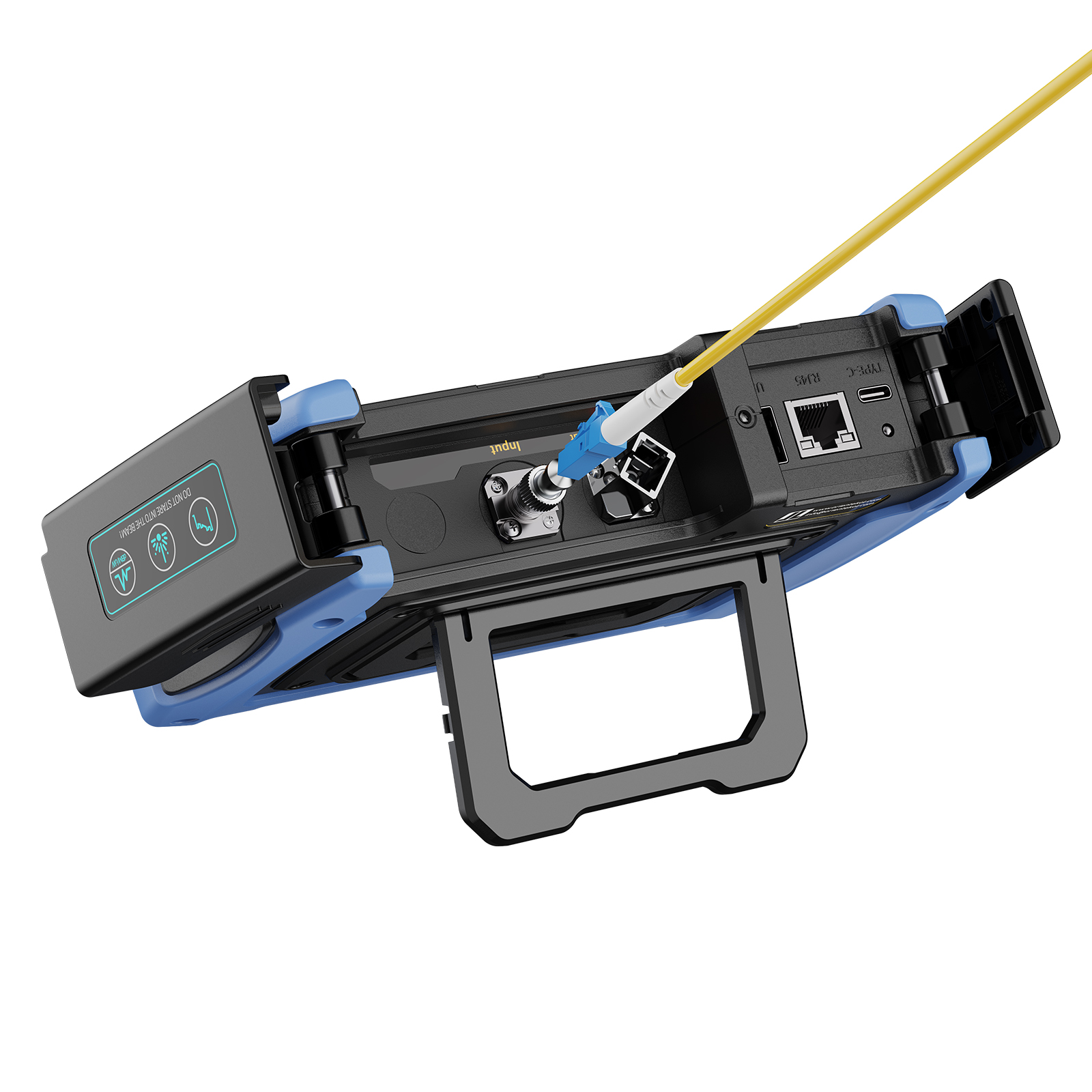

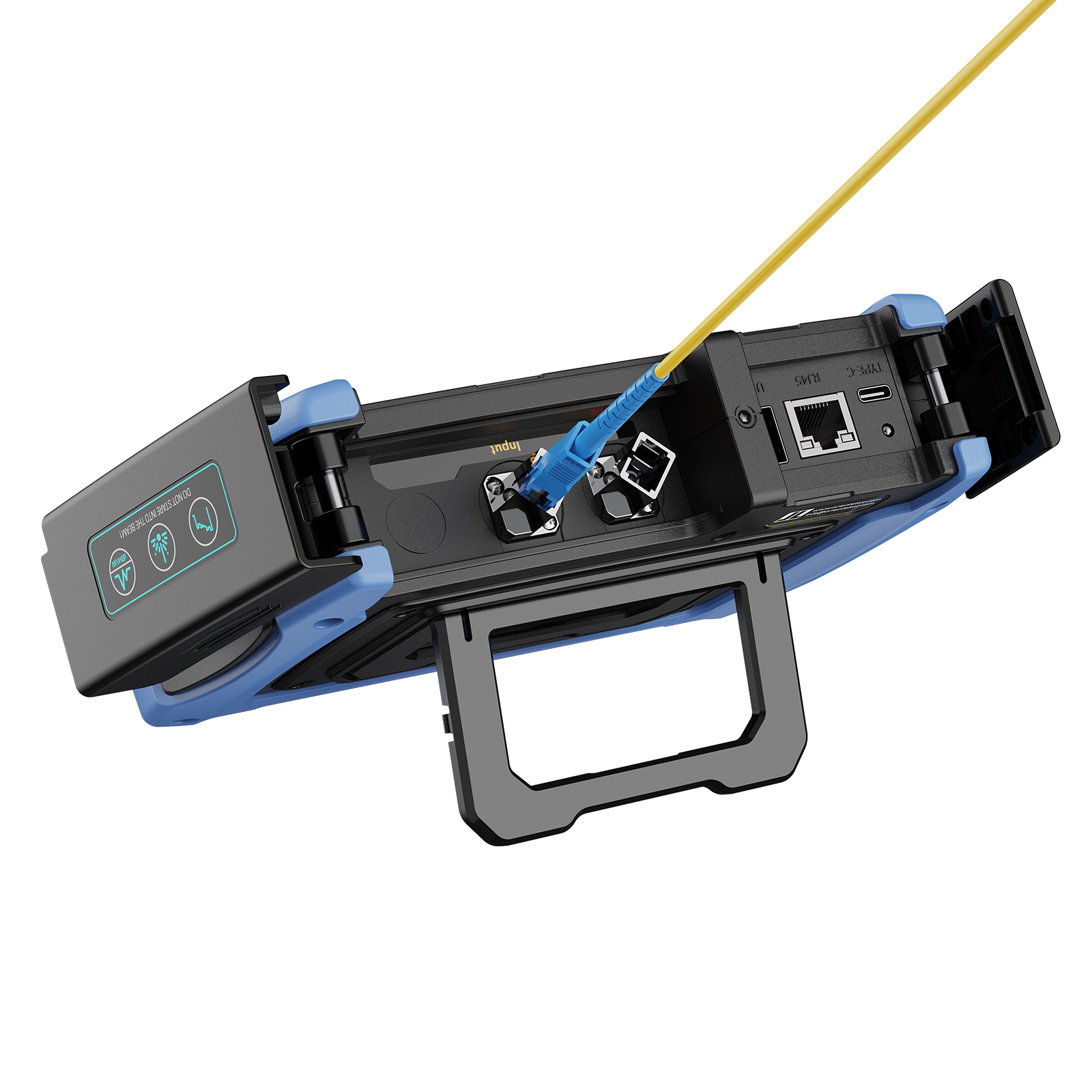

    RJ45 Wire sequencing
    Ensure precise wire sequencing. Design of signal transmission interface plug-and-play to avoid loss.
  • 5.jpg

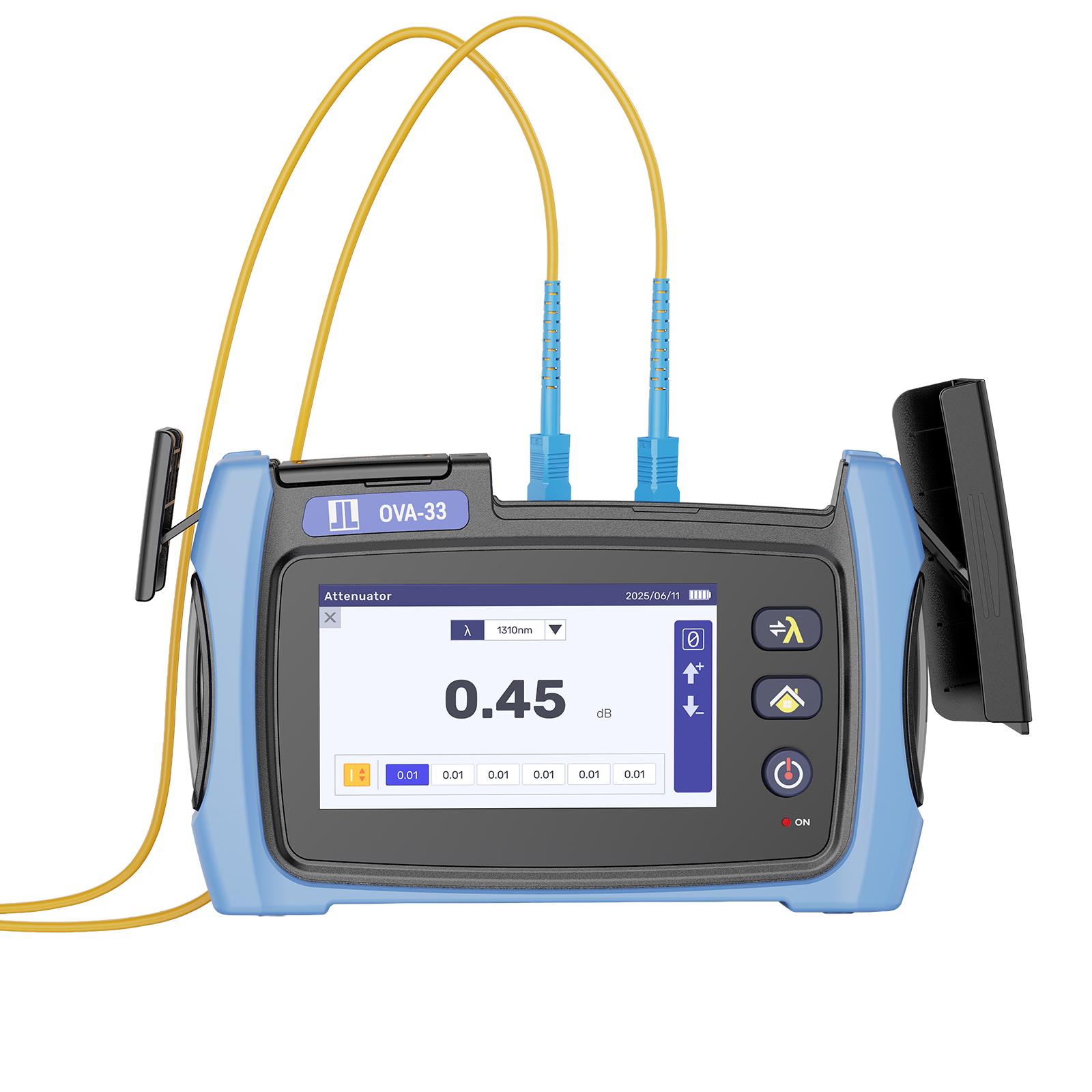

    Application scenarios

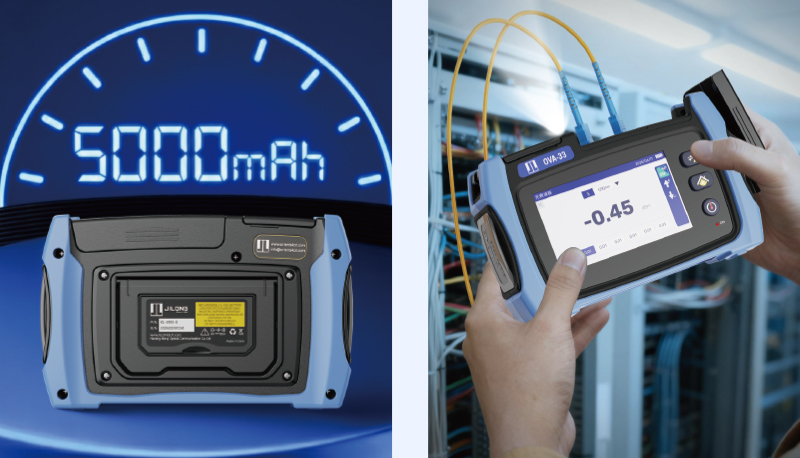

  • 7.jpg
    5000mAh High-capacity Battery
    Built-in lighting for easier operation
  • 8.jpg

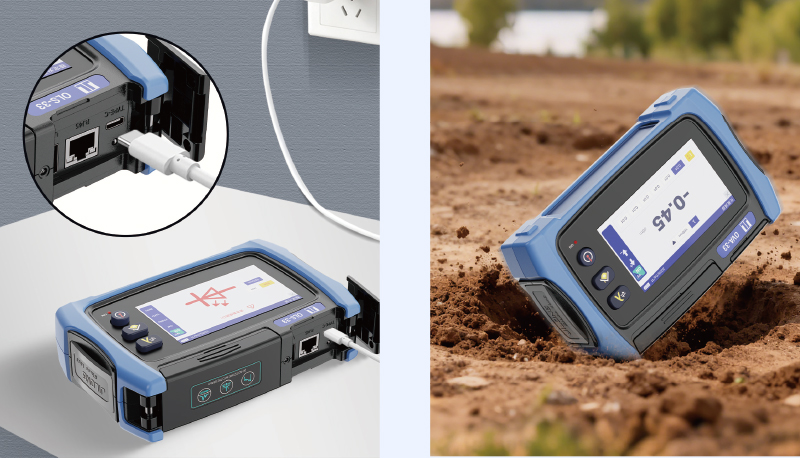

    Type-C Charging
    All-Body Shock-Absorbing Rubber Casing
  • 9.jpg

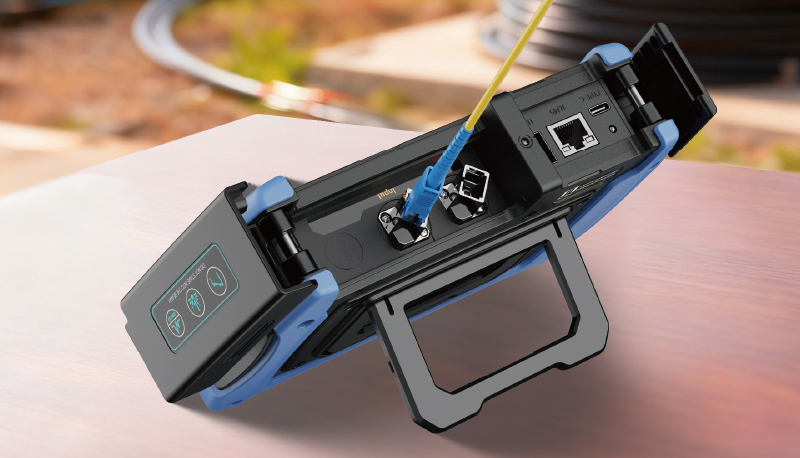

    SC (Standard Configuration)
Attenuator Parameters
Calibration Wavelength1310/1550（nm）
Peak Attenuation40dB40dB
Insertion Loss≤2dB
Resolution Ratio0.01dB
Attenuation Error±0.2dB
Repeatability±0.1dB
Maximum Input Power24dBm
Working Temperature-10~+50（℃）
Storage Temperature-20~+60（℃）
Automatic Shutdown Time10min
General Parameters
LanguageEnglish, Chinese, Spanish, French, Portuguese, Russian, Thai, Korean
Optical Fiber PortSC/UPC
Display Screen4.3-inch color LCD display screen

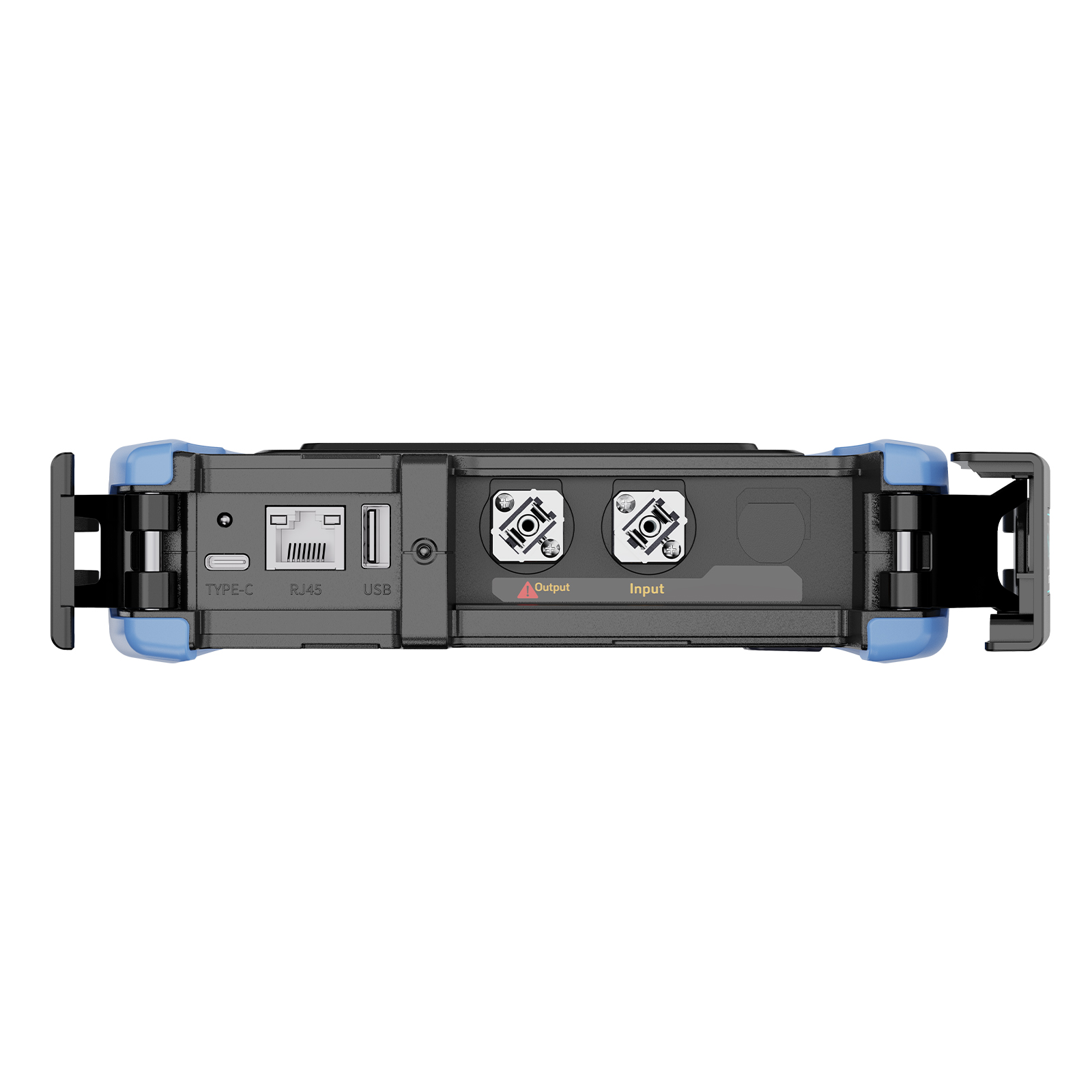

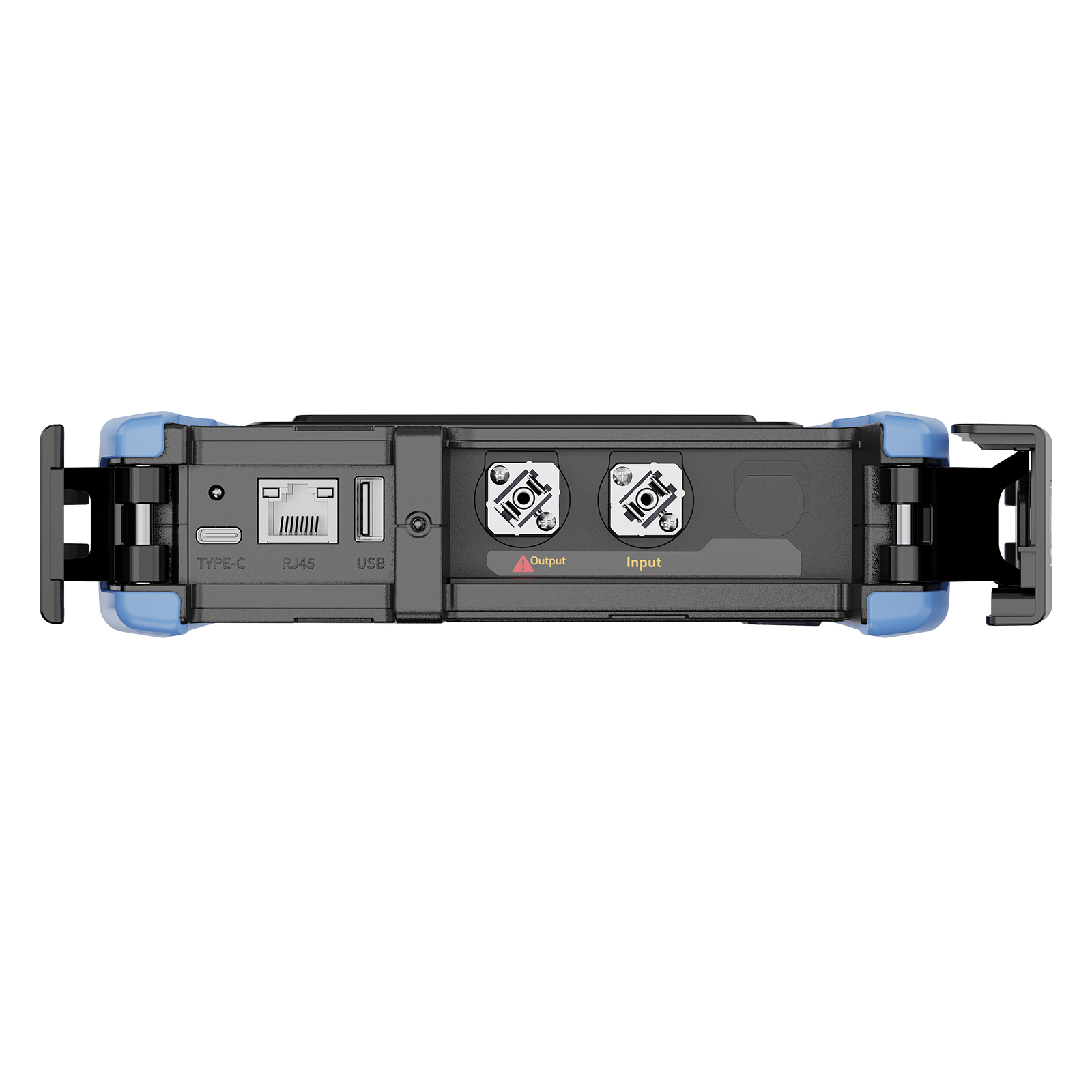

PortCharging port x 1,  USB 2.0 x 1, RJ45 x 1
Working Temperature-10 ~ 50˚C (0-40 ℃ for use with power, 0 to 35 ℃ battery charging)
Storage Temperature-20 ~ 60˚C
Height4000 m
Humidity-0 ~ 90% RH (20% ~90% 739874  AC adapter, non-condensing)
Power Mode100 - 240V AC, 50/60Hz (AC adapter)
Battery3.7V, 5000mAh, ≥18.5Wh
Auto Power-O Time10min
LED LightingLight Intensity>15000mcd
Data StorageMemory: 1000 power measurement records  External Storage: USB
Size179 mm (W) × 112 mm (H) × 48 mm (D)
Weight0.6 kg (Unit + Battery)
