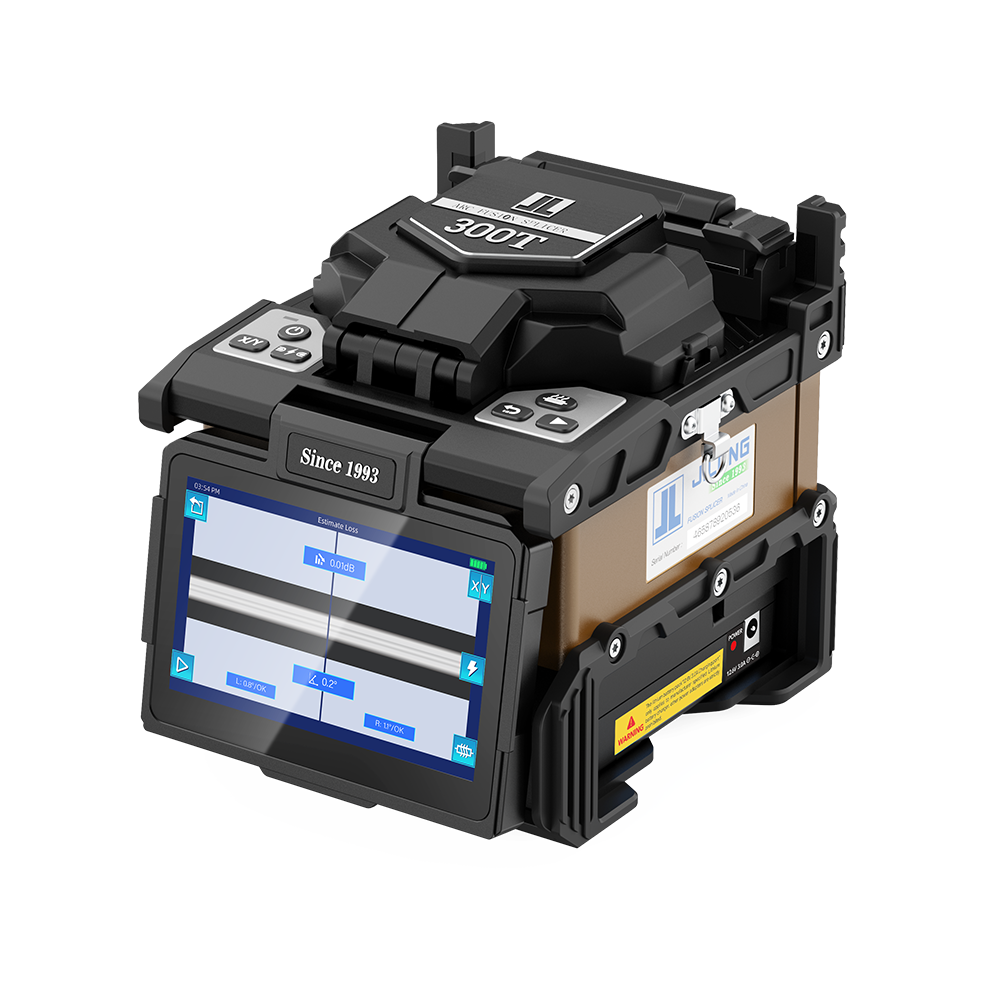

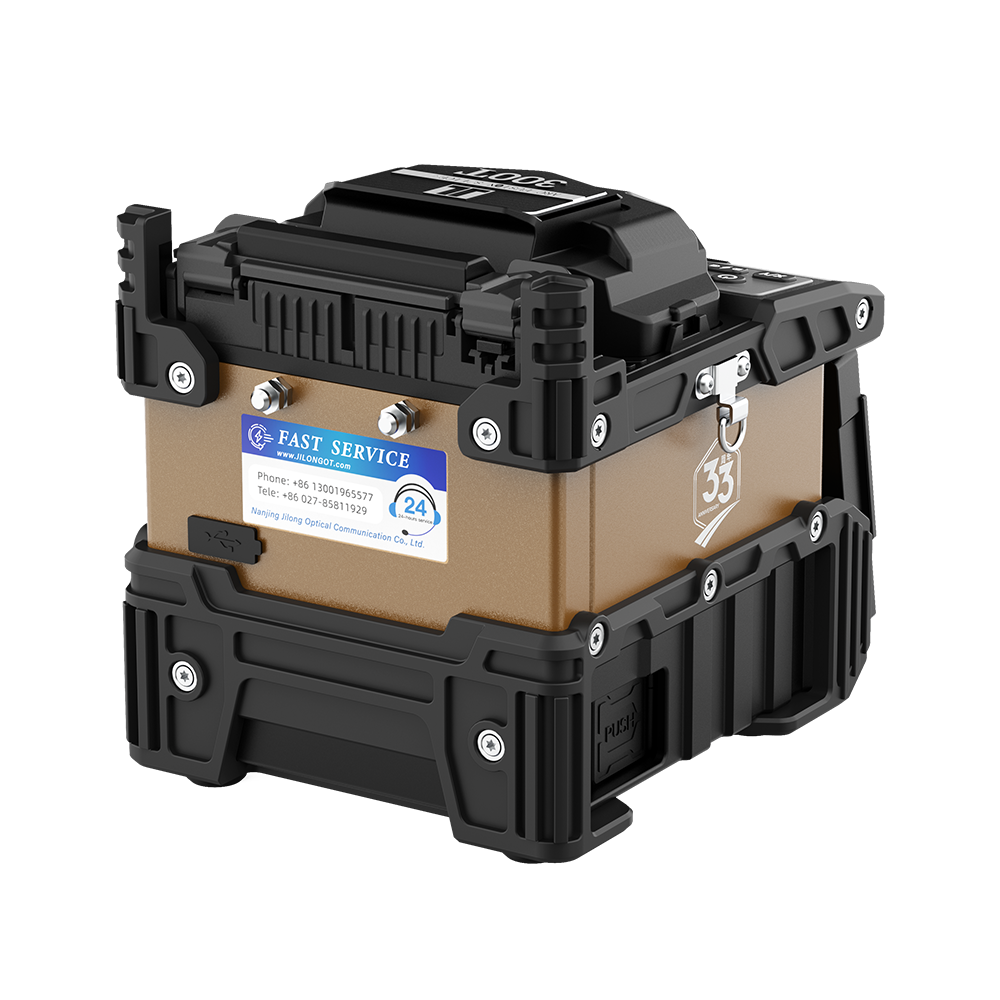

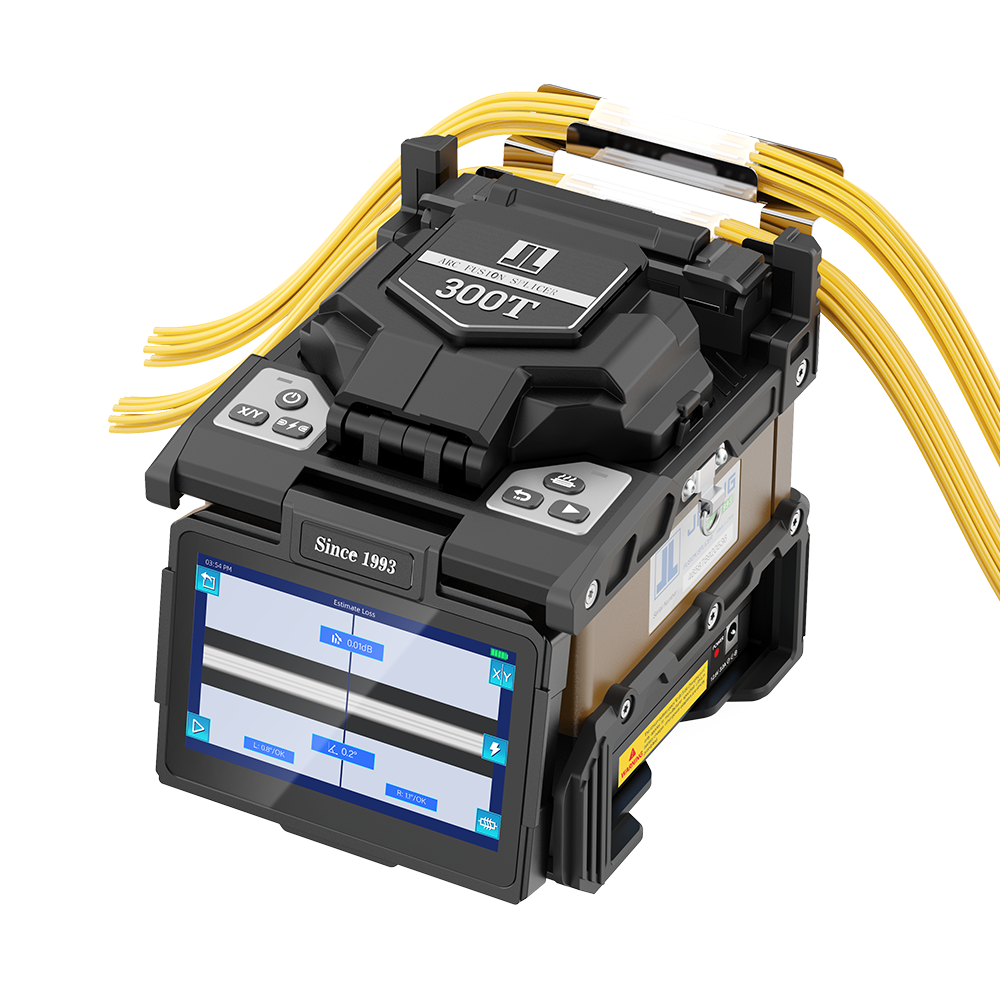

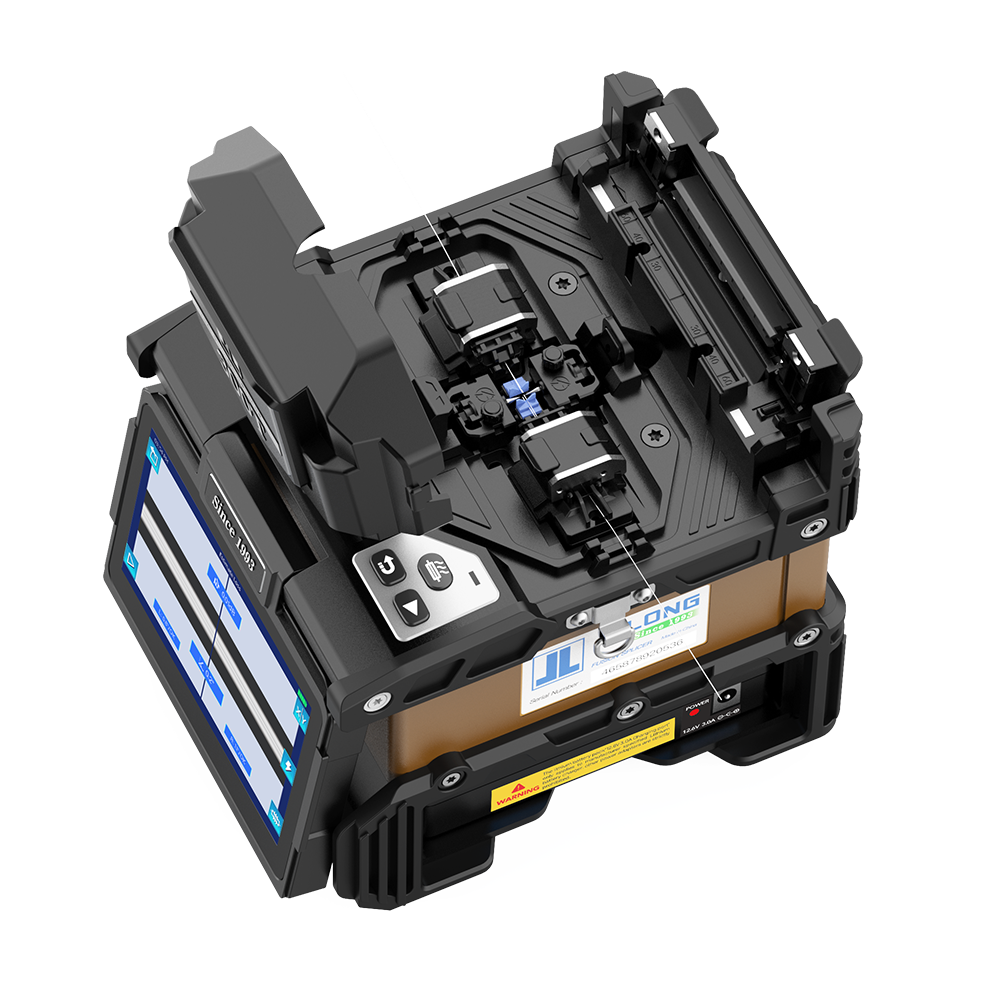

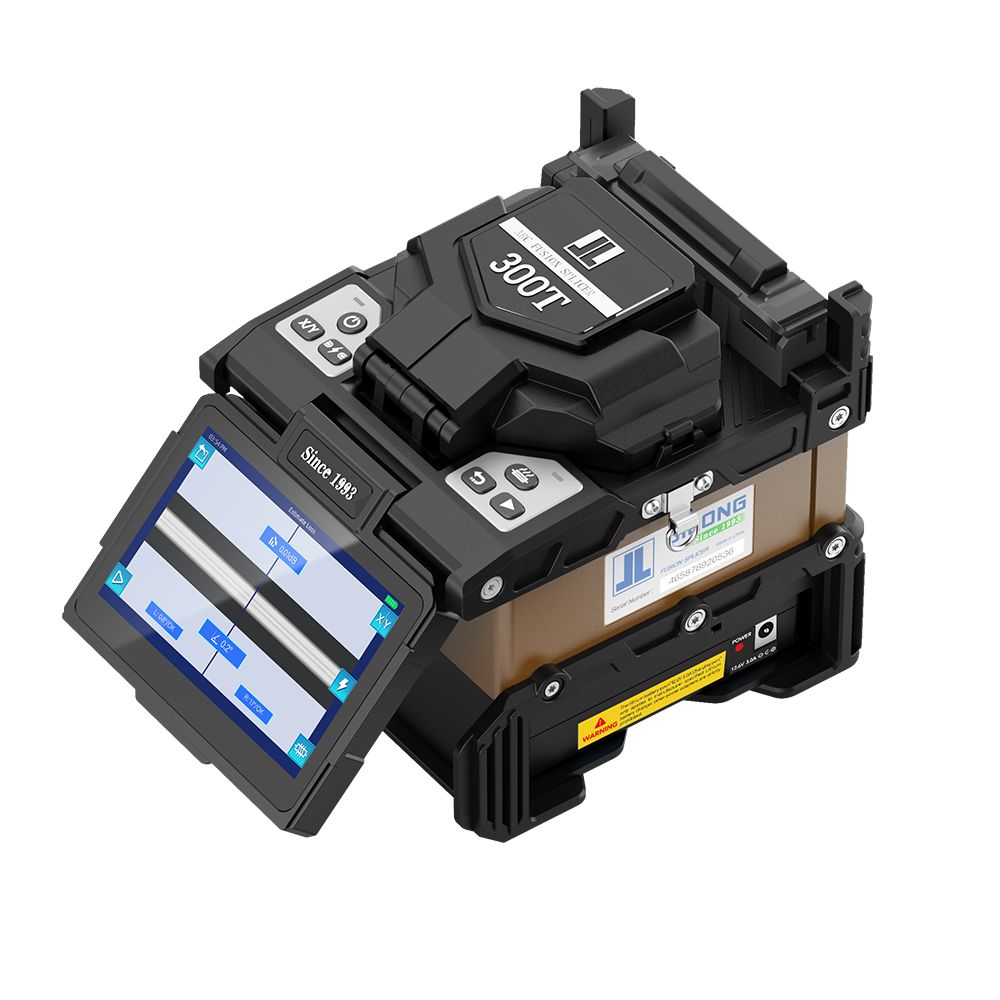

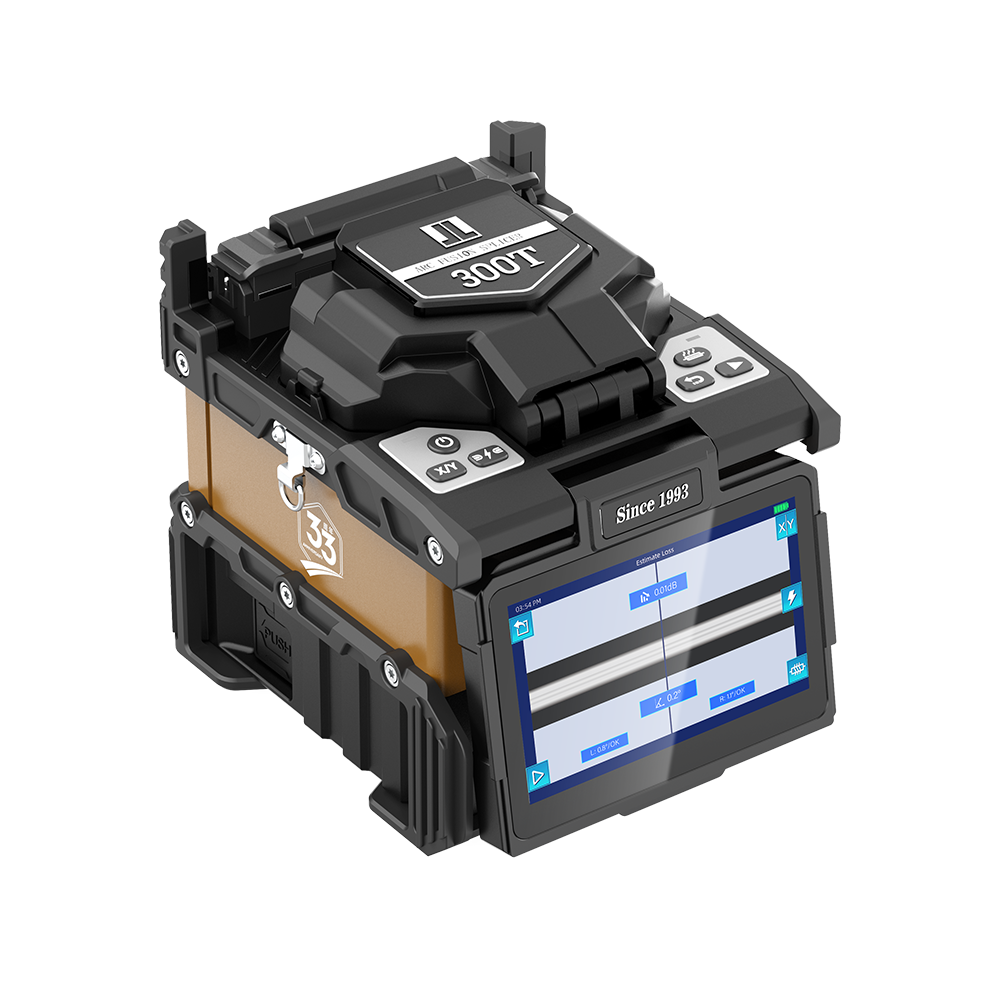

300T 6-Motor Trunk Fusion Splicer

300T 6-Motor Trunk Fusion Splicer 300T 6-Motor Trunk Fusion Splicer 300T 6-Motor Trunk Fusion Splicer 300T 6-Motor Trunk Fusion Splicer 300T 6-Motor Trunk Fusion Splicer 300T 6-Motor Trunk Fusion Splicer 300T 6-Motor Trunk Fusion Splicer 300T 6-Motor Trunk Fusion Splicer 300T 6-Motor Trunk Fusion Splicer 300T 6-Motor Trunk Fusion Splicer
300T 6-Motor Trunk Fusion Splicer 300T 6-Motor Trunk Fusion Splicer 300T 6-Motor Trunk Fusion Splicer 300T 6-Motor Trunk Fusion Splicer 300T 6-Motor Trunk Fusion Splicer 300T 6-Motor Trunk Fusion Splicer 300T 6-Motor Trunk Fusion Splicer 300T 6-Motor Trunk Fusion Splicer 300T 6-Motor Trunk Fusion Splicer 300T 6-Motor Trunk Fusion Splicer
Manual Catalogue Tutorials VR
Core features

All-Mental construction

6-Motor, core alignment

G654E fiber compatible

3D surround dual heating slots 10s heating (fast mode)

Tool-Less disassembly SOC holder

9000mAh Li-ion battery 500 splice+heat cycles per charge

Recommended Products
  • KL-500S FTTx Fusion Splicer
  • KL-520 FTTx Fiber Fusion Splicer
  • KL-400 Ribbon Fiber Fusion Splicer
  • JL-ELE-N Electrodes for Fiber Fusion Splicer
  • KL-6300 Fiber Monster OTDR
  • FIP-600V Fiber Optic Connector Inspection System
  • OLS-22 Mini Multi-functional Optical Light Source
  • OFI-45P Optical Fiber Identifier
300T 6-Motor Trunk Fusion Splicer
RequestRequest a quote consultOnline consultation Telephone+86 4008836695
Features
  • 1.jpg
    Application scenarios
    Based on 30 of dedicated R&D,300T employs state-of-the-art 6-motor fiber core alignment technology, effectively minimizing splice loss in long-haul backbone networks. With a all-metal body and an intuitive human-machine interface, it maintains exceptional stability even in harsh operating environments. The unit is widely used in backbone transmission, FTTx deployment and maintenance, as well as security and surveillance systems
  • 2.jpg

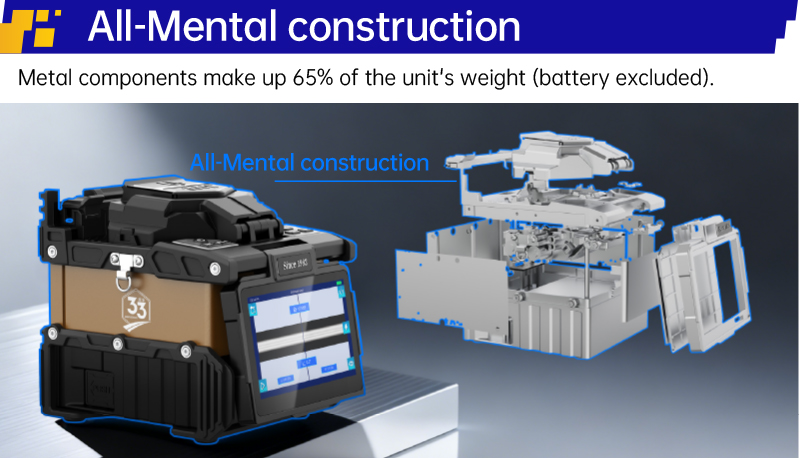

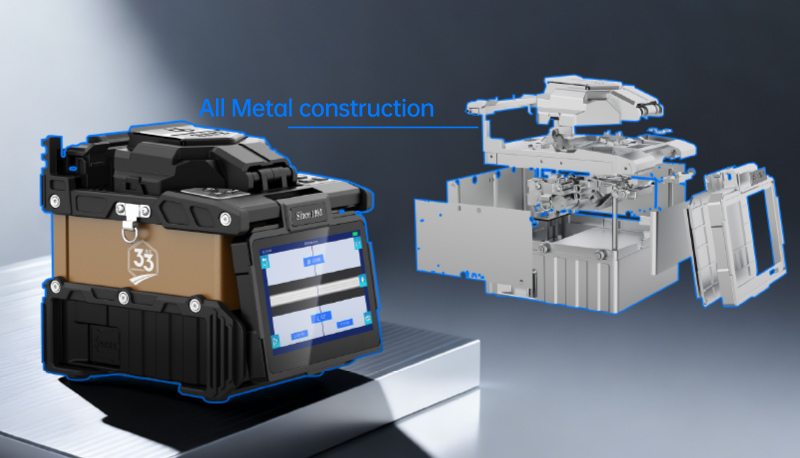

    Al-Metal Material
    Metal components make up 65% of the unit's weight (battery excluded).
  • 3.jpg

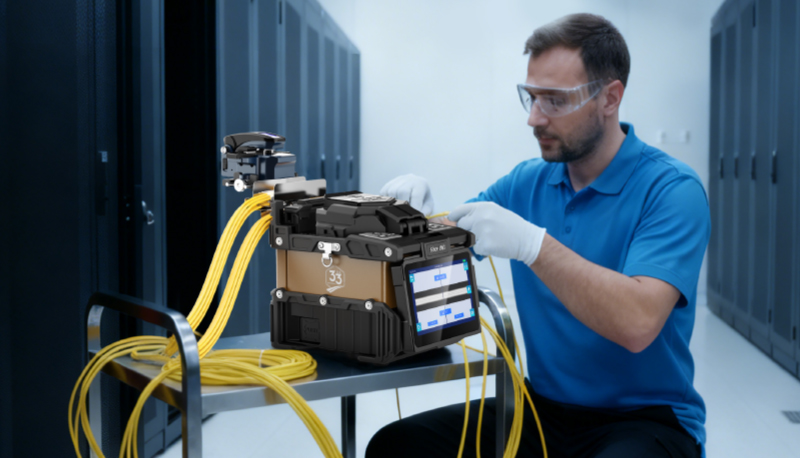

    G654E  Fiber Compatible
    Core-Network Grade：Master G.654E splicing，achieve stable loss<0.03dB！
  • 4.jpg

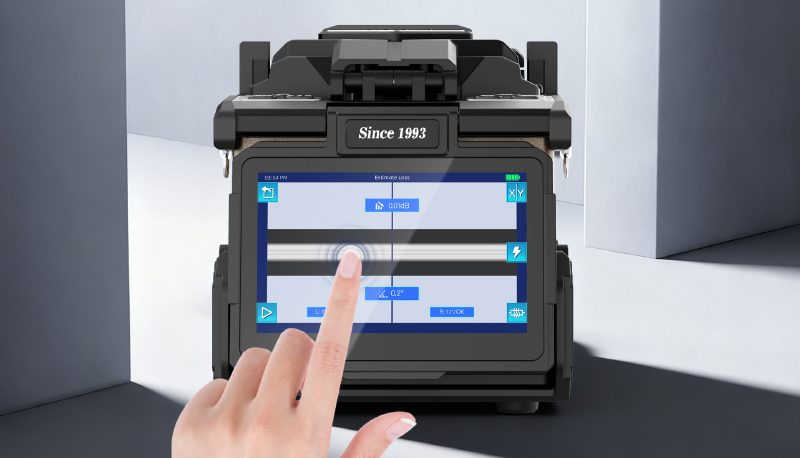

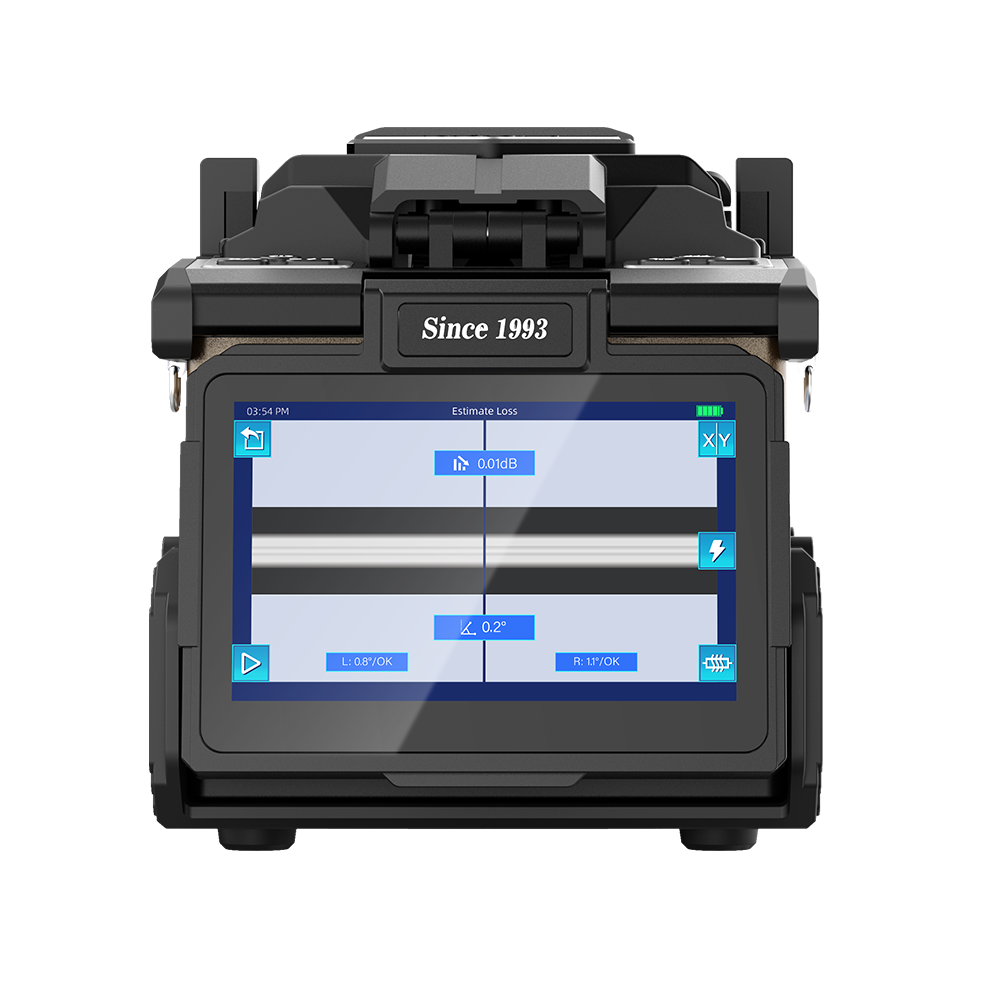

    5-inch Capacitive Touch Screen
    Intuitive operation and clear core-alignment visuals minimize setup stress and boost field confidence.
  • 5.jpg

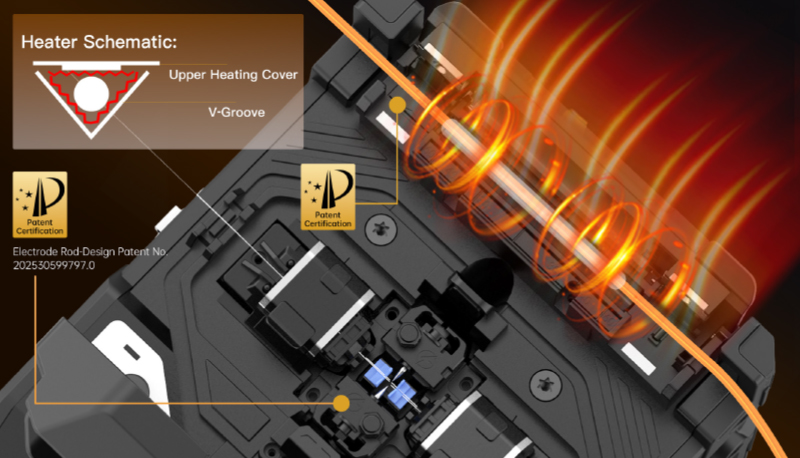

    3D surround dual heating slots
    10s heating (fast mode).
  • 6.jpg

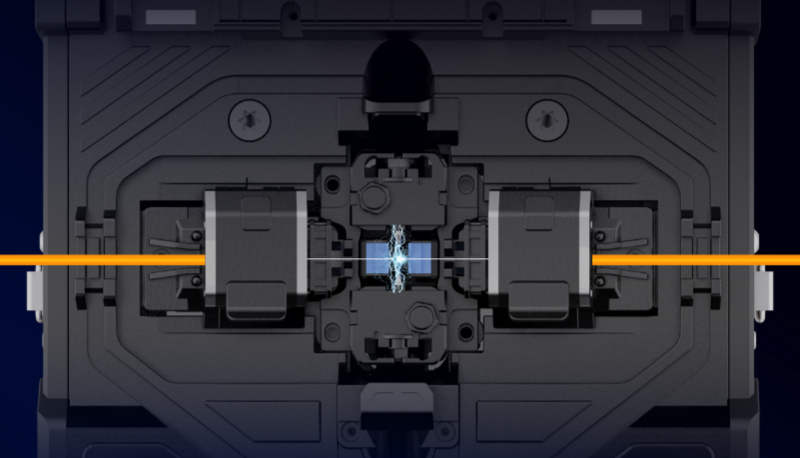

    6s Splicin
    Splice in 6s. Work at Double Pace
  • 7.jpg

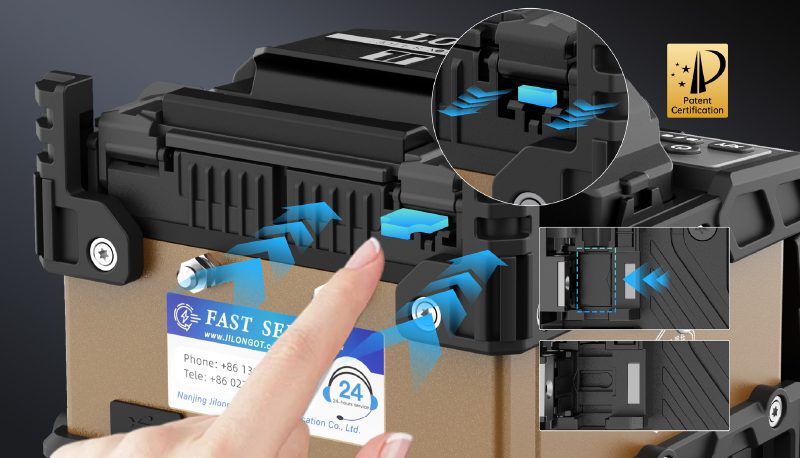

    Tool-Less disassembly SOC holder
    One-Touch Switching. No Delays. Maximize Backbone Productivity
  • 8.jpg

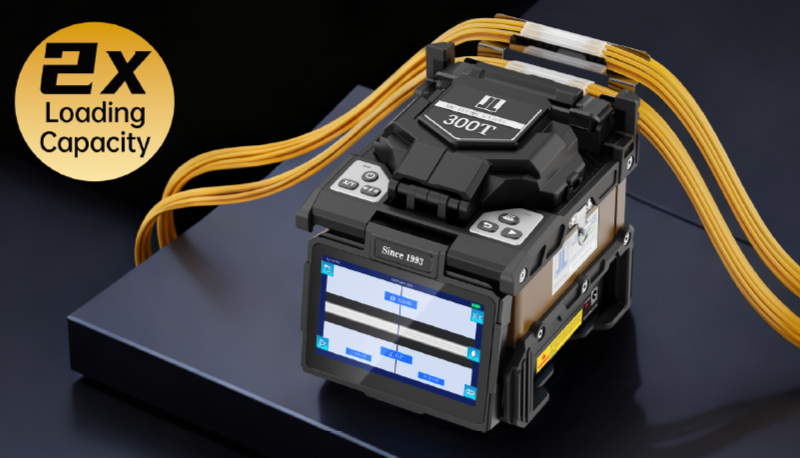

    Dual-Layer Cooling Slot
    Say goodbye to single-layer congestion! The dual cooling tray offers 2x loading capacity, doubling fusion efficiency.
  • 9.jpg

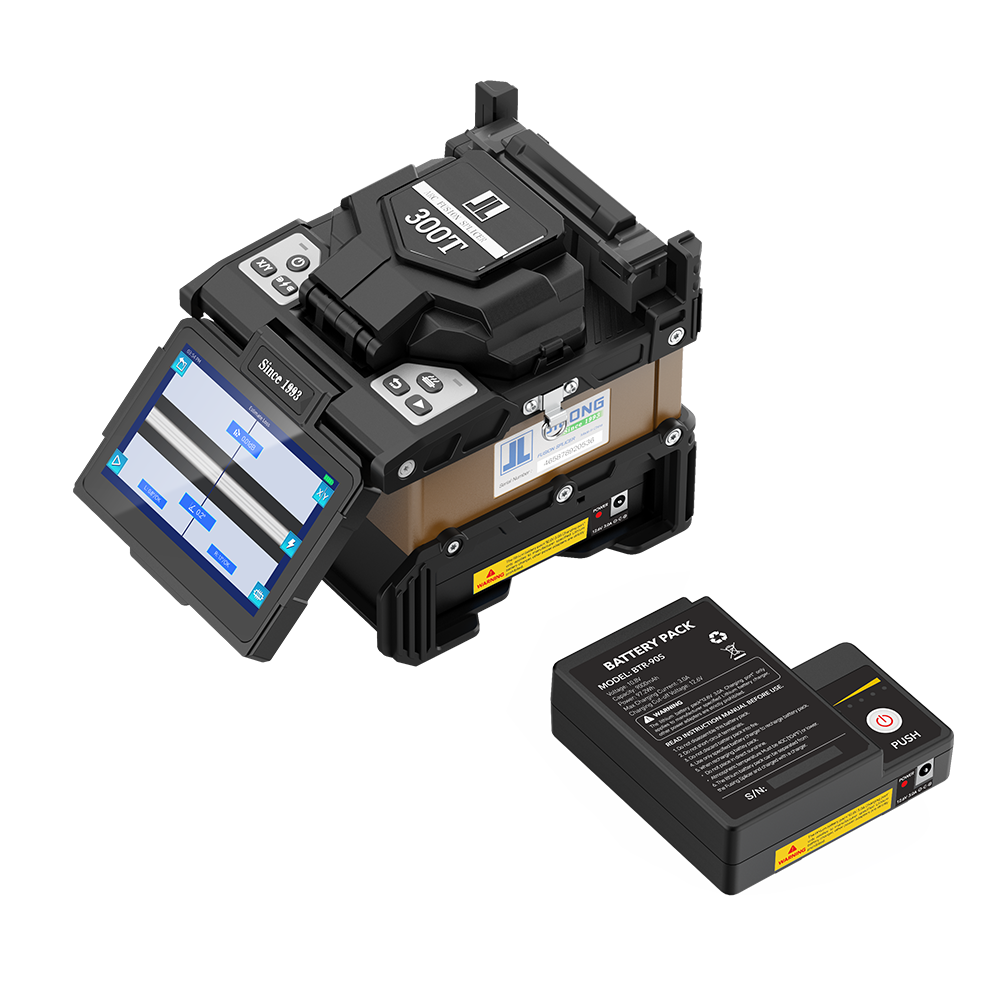

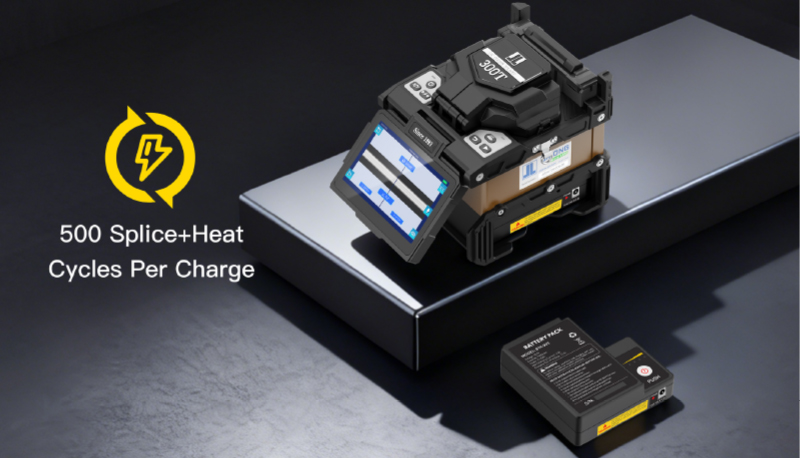

    9000mAh Li-ion Battery
    9000mAh Battery. Zero Power Worries.
  • 10.jpg

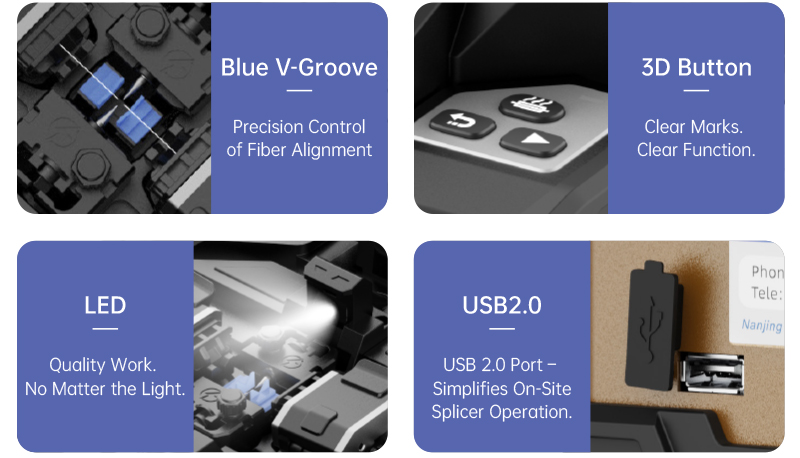

    Product Display
  • 11.jpg

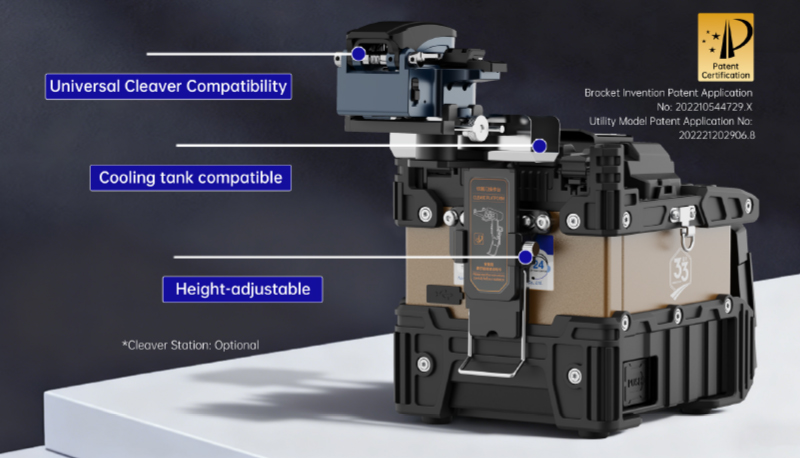

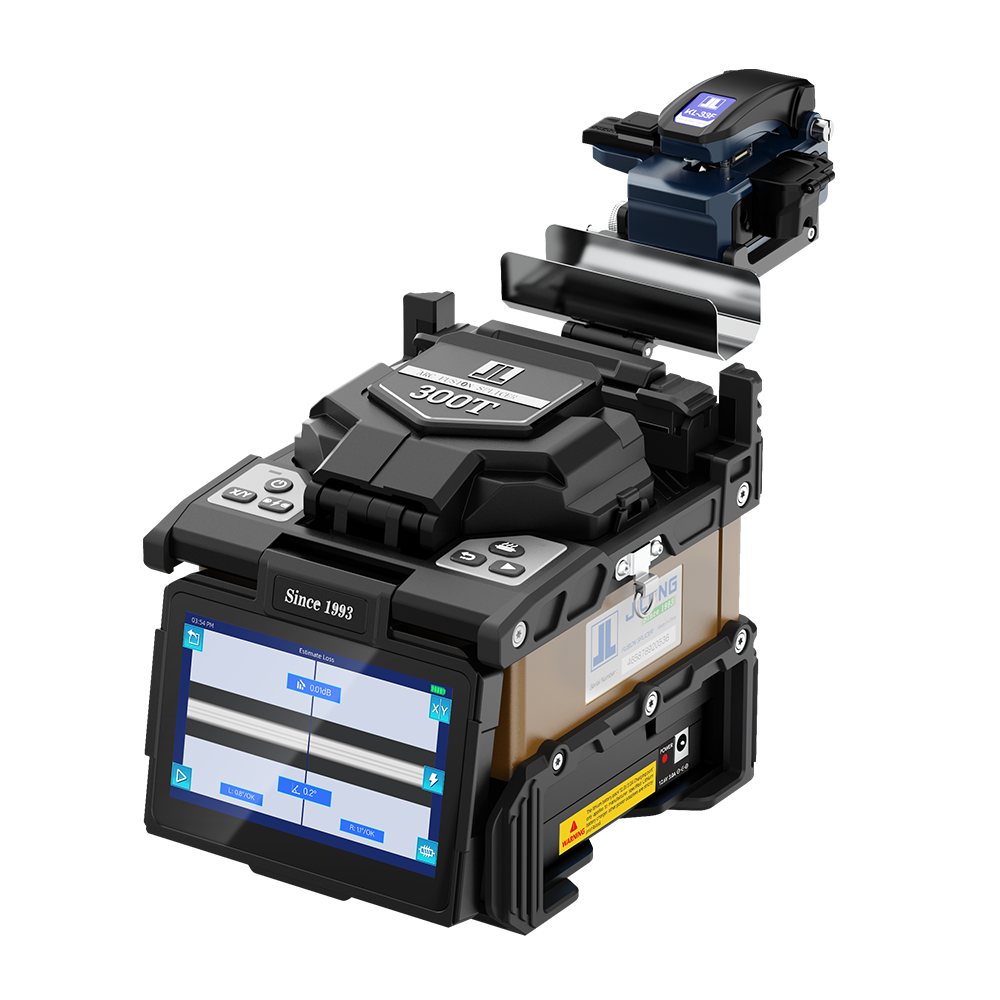

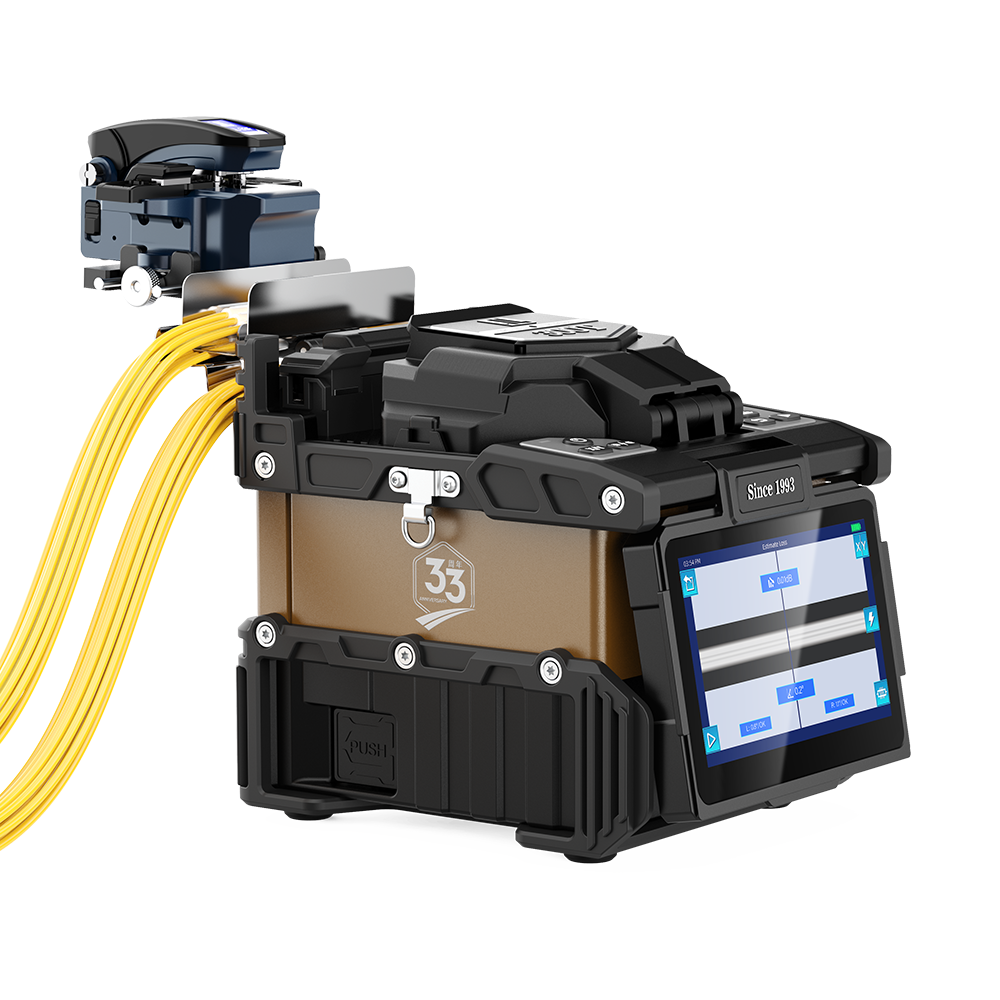

    Rich Expandability  Cleaver Operation Table
    All-In-One Station: Cleaving & Splicing in Place.
  • 12.jpg

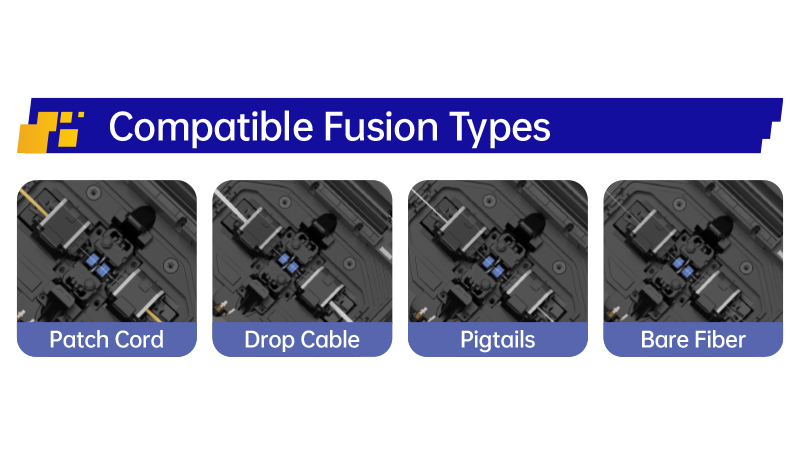

    Compatible Fusion Types
  • 13.jpg
    Enjoy lifetime free service
    1.Free maintenance
    2.Free calibration
    3.Free training
Product Specifications
Specifications
Splice Method :Core Alignment
Applicable Fibers :SM(TTU-T G.652&G.657)/ MM(ITU-T G.651)/CS(ITU-T G.654)/DS(TU-T G.653)/ NZDS(TU-T G.655)
Compatible Fiber/Cable :0.25~3.0mm/Drop Cable
Fiber Holder :Replaceable Universal Holder
Fiber Diameter :Cladding:80-150μm，Coating:100~1000μm
Fiber Cleave Length :8~16 mm
Splice mode :Max 128 groups
Typical Splice Loss :SM:0.02dB/MM:0.01dB/CS:0.03dB/DS:0.04dB/NZDS:0.04dB/G.657:0.02dB ★①
Return Loss :>>60dB
Splicing Time :6s(SM G652 QuickMode)
Estimated Splice Loss :Available
Heating Time :10s(SM G652 250μm 40mm heat shrink tubing Fast mode)user adjustable
Protection Sleeve Length :20mm, 30mm, 40mm, 50mm, 60mm
Heat Programs:Max 32 groups
Battery :9000mAh Lithium battery, approx. 500 splice & heat cycles per charge ★②
Electrode Life :Approx. 5000 discharges ★③
Auto-start :Splicing / Heating
Automatic Fiber Identification :Supported
Automatic ARC Identification :Automatic calibration based on ambient temperature and air pressure
Results Storage :10,000 splice records or 2,000 splice images
Tension Test :1.96~2.25N
Operating Condition :Altitude: 0~5000m, 0~95% relative humidity, -20~50°C, Max Wind 15m/s
Storage Condition :0~95% relative humidity, -20~60°C
Display :5.0 inch High-definition LCD display
Fiber Magnification :X,Y,XY,X/Y:320x magnification
Power Supply :AC Input 100-240V, DC Input 9-14V
Terminal :USB2.0
Weight :2.367kg(without battery)/2.9kg(with battery)
Size :167Hx 147Wx 166D mm (including protective case)
★All-Metal Material: Excluding the battery, metal components account for over 65%+ of the weight.
★500 Splice + Heat Cycles on Full Charge: Results obtained in a room temperatureenvironment using 0.25mm fiber and 40mm sleeves; results are largely influenced bybattery status and operation.
★Cleaver Workstation: The workstation must be purchased separately.
① Results are tested using standard fibers according to ITU-T and IEC standard truncation methods; loss varies due to environment and fiber characteristics.
② Results obtained in a room temperature environment; largely influenced by battery status and operating environment.
③ Electrode life varies due to environment, fiber types, and splicing modes.


Product manual
    No data
Products Tutorials
    No data

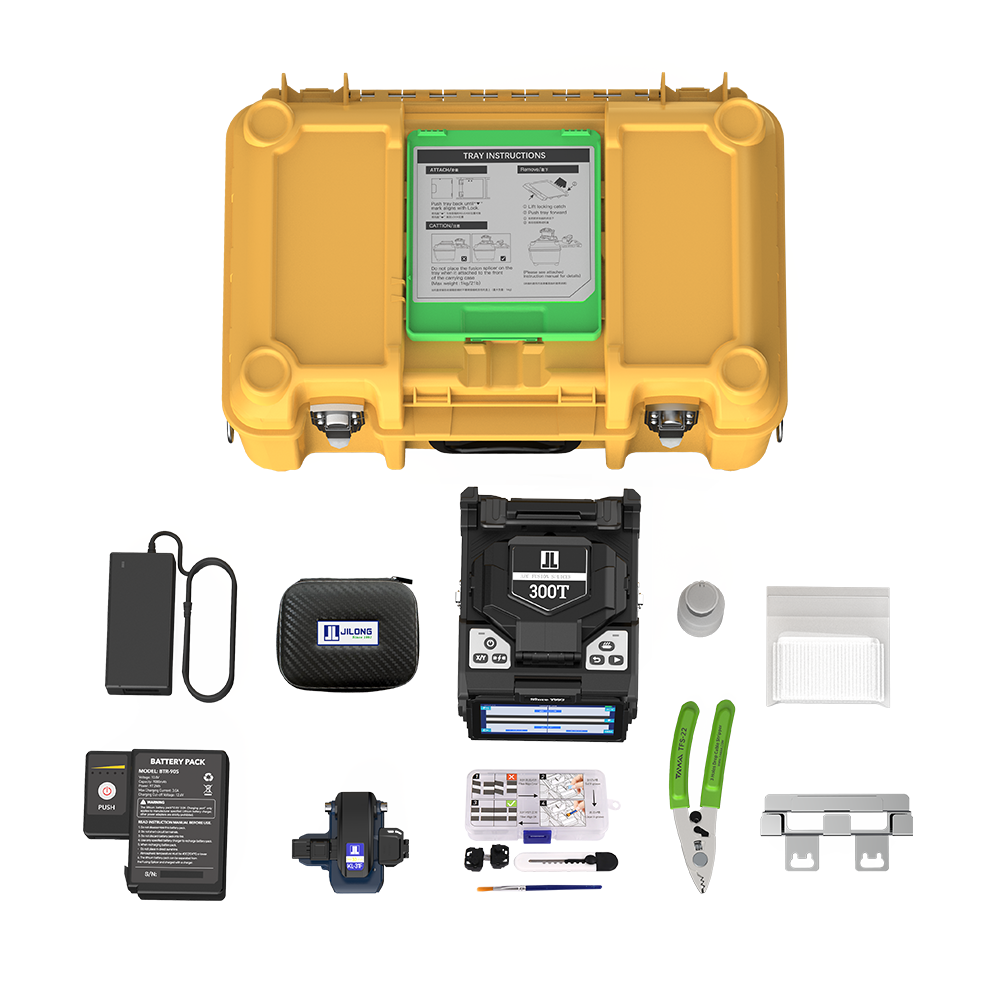

Product configuration
