KL-520 FTTx Fiber Fusion Splicer

KL-520 FTTx Fiber Fusion Splicer KL-520 FTTx Fiber Fusion Splicer KL-520 FTTx Fiber Fusion Splicer KL-520 FTTx Fiber Fusion Splicer
KL-520 FTTx Fiber Fusion Splicer KL-520 FTTx Fiber Fusion Splicer KL-520 FTTx Fiber Fusion Splicer KL-520 FTTx Fiber Fusion Splicer
Category: Fusion Splicer
Manual Catalogue Tutorials VR

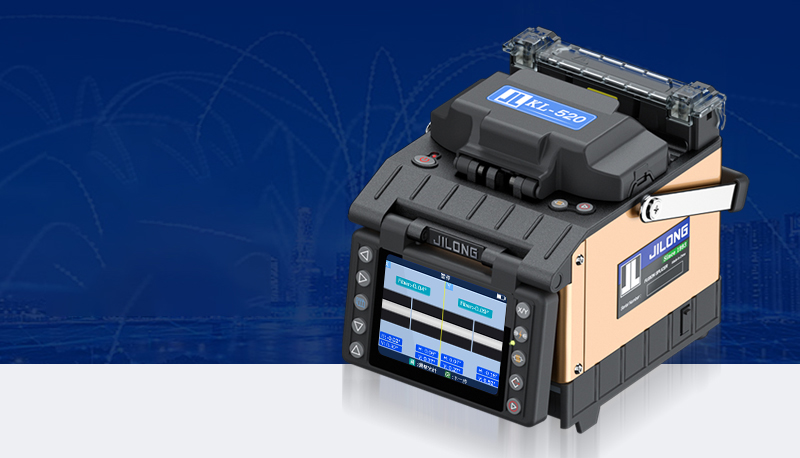

Core features
● Fast-splicing 8S  Fast-heating 18s ● 5000 Times electrode life● Average loss under 0.01dB● 3.5" TFT color LCD● FTTx Fiber optic fusion splicer. Easy to operate● 10000 Groups of fusion records/ 2000 groups images
Recommended Products
  • KL-23F High Precision Fiber Cleaver
  • JL-ELE-N Electrodes for Fiber Fusion Splicer
  • KL-400 Ribbon Fiber Fusion Splicer
  • 280T All-Rounder Middle Trunk Line Fusion Splicer
  • KL-6200 Fiber Master OTDR
  • KL-22F Hand Held High Precision Fiber Cleaver
  • FIP-600V Fiber Optic Connector Inspection System
KL-520 FTTx Fiber Fusion Splicer
Category: Fusion Splicer
RequestRequest a quote consultOnline consultation Telephone+54 1135692774
Features
  • FTTX Fiber Fusion Splicer
    FTTX Fiber Fusion Splicer
    ● Four-motor cladding alignment
    ● Dual cameras, solid three-proof design
    ● Three-year warranty
  • Use in multiple scenarios
    Use in multiple scenarios
    ● FTTx optical fiber to the home
    ● Security monitoring
    ● Installation and maintenance engineering
  • Expansibility - cutting knife console
    Expansibility - cutting knife console
    ● Applicable to a variety of cutting knives
    ● Cooling tank can be placed
    ● Highly scalable (this operating table needs to be purchased separately)
  • Tool-free installation of electrode rodsg
    Tool-free installation of electrode rods
    ● The life of the electrode is about 5000 times
    ● The electrode rod can be easily disassembled without tools
    ● When the welding times are too high and the loss is too large, please replace the electrode rod as soon as possible
  • 8s automatic welding
    8s automatic welding
    ● Four-motor splicing
    ● Core alignment
    ● Typical values (SM G652 Quick mode)
    (Affected by battery usage status and operating environment)
  • 18s automatic heating
    18s automatic heating
    ● Heating time can be adjusted
    ● SM G652 250μm 40mm heat shrink tube in fast mode (affected by battery usage status and operating environment)
  • 3 in 1 Universal Fixture
    3 in 1 Universal Fixture
    ● jumper line
    ● pigtail
    ● leather line
    ● bare fiber
  • 5200mAh large capacity lithium battery
    5200mAh large capacity lithium battery
    ● Can be charged externally
    ● Each charge supports about 300 splicing + heating
  • Solid three-proof design
    Solid three-proof design
    ● Adapt to welding + heating in various environments
    ● Waterproof, dustproof and dropproof
Product Specification


Splice Method :Active Clad-Alignment
Applicable Fibers :SM(ITU-T G.652&G.657) / MM(ITU-T   G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Compatible Fiber/Cable :0.25~3.0 mm / indoor cable
Fiber Holder :Replaceable (Universal: FH-60, SOC   Holder: FH-SOC(optional))
Fiber Diameter :Cladding: 80-150μm，Coating: 100~1000μm
Fiber Cleave Length :8~16 mm
Splice mode :Max 128 modes
Typical Splice Loss :SM: 0.03dB / MM: 0.01dB / DS: 0.04dB /   NZDS: 0.04dB / G.657: 0.03dB ★①
Return Loss :>>60dB
Splicing Time :SM Quick mode : 8 sec / SM Average: 10   Sec
Estimated Splice Loss :Available
Heating Time :Quick mode 18 sec.(SM G652 250μm 40mm   Sleeve) adjustable
Protection Sleeve Length20mm, 30mm, 40mm, 50mm, 60mm
Heat Programs:Max 32 modes
Battery5200mAh Battery Capacity, Typical 300   Cycles (Splice&Heat) per Charge ★②
Electrode Life5000 arcs, can be extended by using an   electrode grinder ★③
Auto-start :Splice / Heating
Automatic Fiber Identification/
Automatic ARC IdentificationAutomatic arc calibration by air pressure   and temperature
Results Storage :The last 10,000 splice records and 2,000   result images
Tension Test1.96~2.25N
Operating ConditionAltitude: 0~5000m, 0~95% relative   humidity, -20~50°C, Max Wind 15m/s
Storage Condition0~95% relative humidity, -20~60°C
Display3.5” color high resolution (800 x 480)   display
Fiber MagnificationX, Y, XY, X/Y : 320X Magnification
Power Supply :AC 100-240V, DC 9-14V
TerminalUSB2.0
Weight1.59kg without battery / 1.92kg with   battery
Size155H x 138W x 145D mm (including rubber   bumper)

★①  With identical fibres(in room temperature). Measured by cut-back method relevant to ITU-T and IEC standards.

★②  Splice & Heat cycles may vary depending on the battery status and the operating environment.

★③  Electrode life may vary depending on the operating environment.


Product manual
Products Tutorials
    No data

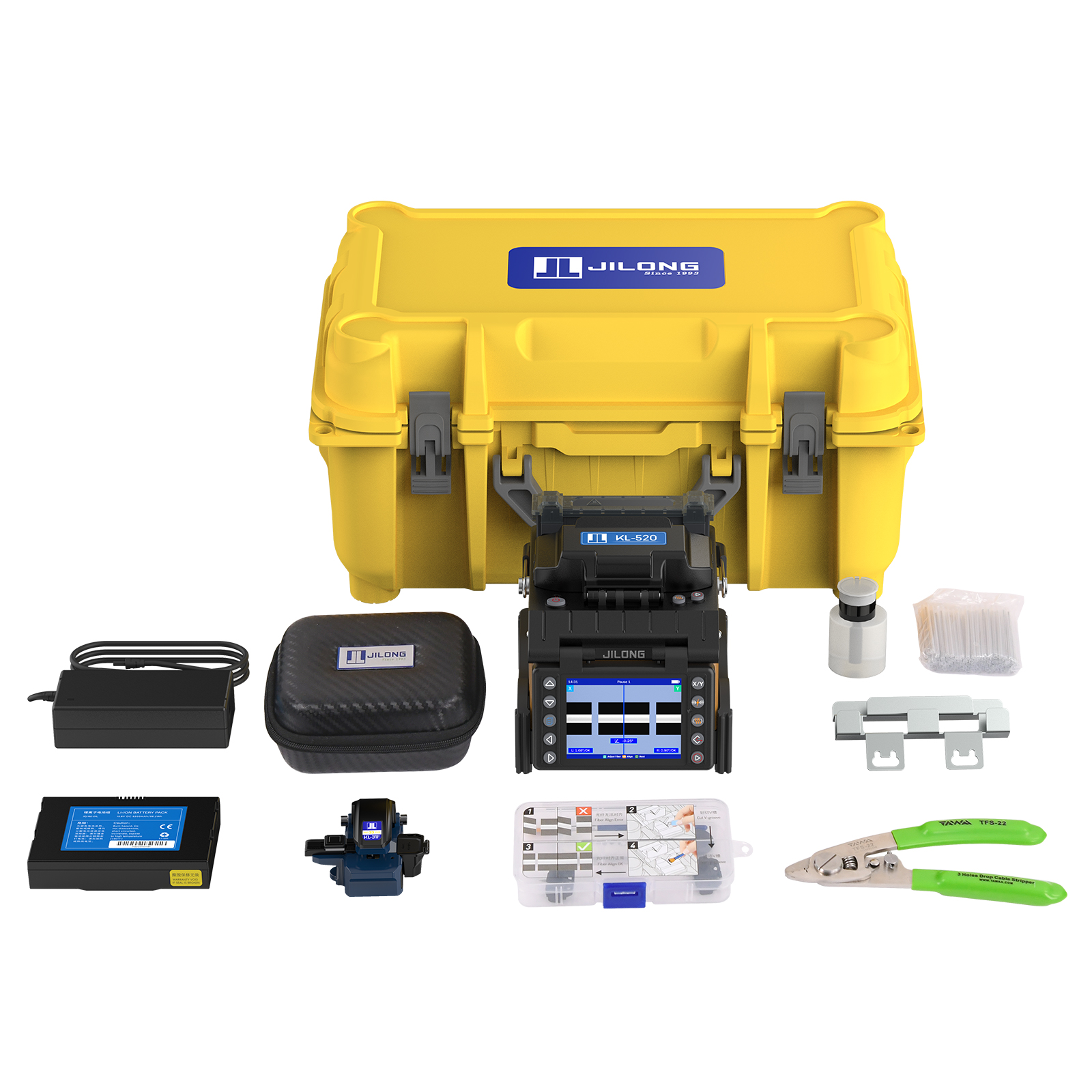

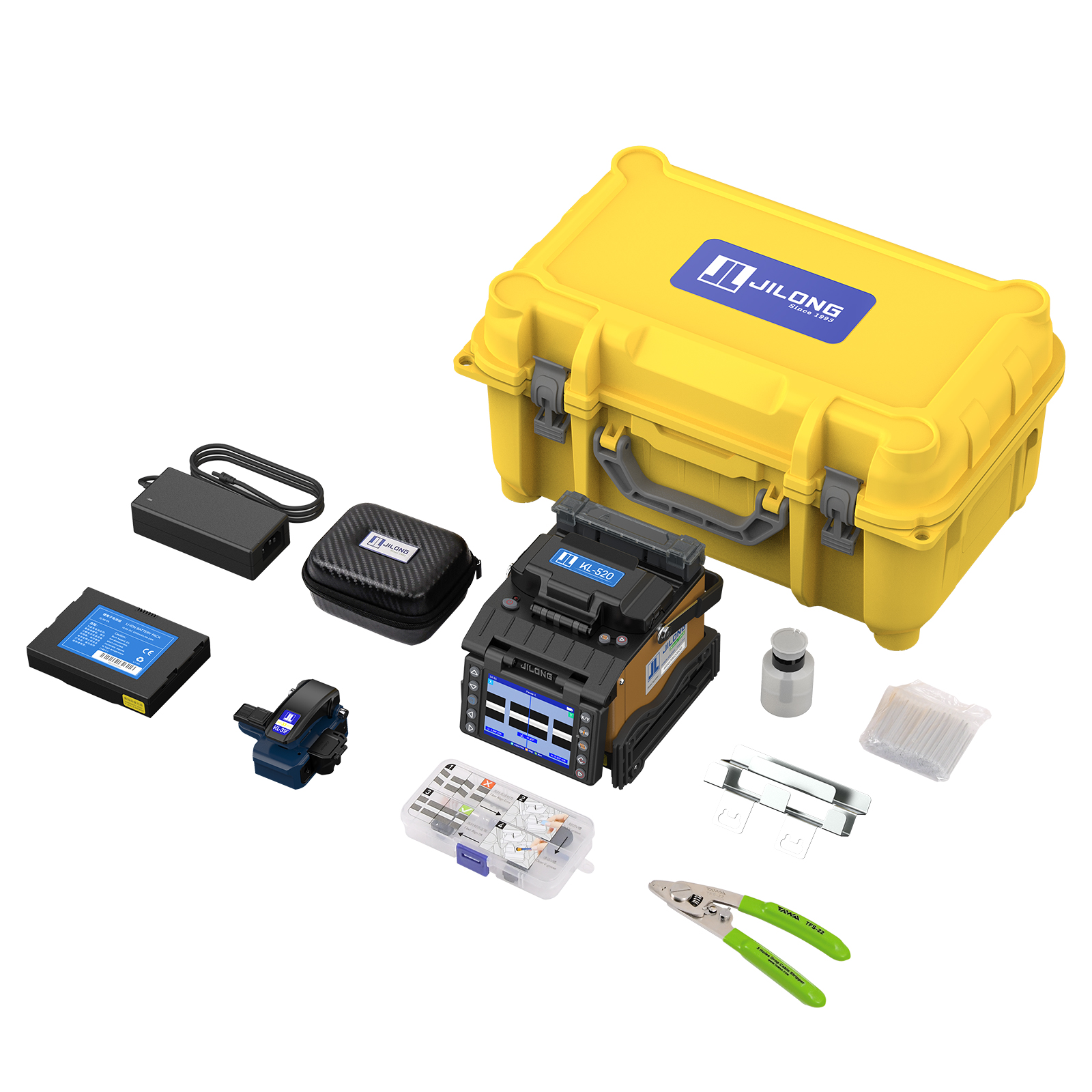

Product configuration
