KL-500S FTTx Fusion Splicer

KL-500S FTTx Fusion Splicer KL-500S FTTx Fusion Splicer KL-500S FTTx Fusion Splicer KL-500S FTTx Fusion Splicer
KL-500S FTTx Fusion Splicer KL-500S FTTx Fusion Splicer KL-500S FTTx Fusion Splicer KL-500S FTTx Fusion Splicer
Category: Fusion Splicer
Manual Catalogue Tutorials VR
Core features
● Efficient, versatile, lightweight & portable● Working platform design for aerial work● Special 3-in-1fiber holde● 3 Year warranty policy● Electrode life around 5000 times(Replaceable)● Automatic splicing & automatic heating● Innovatively no need tools to replace electrodes● Support 120 times of splicing + heating when fully charged
Recommended Products
  • JL-ELE-N Electrodes for Fiber Fusion Splicer
  • JBL-23 Optical Fiber Cleaver Blade
  • KL-520 FTTx Fiber Fusion Splicer
  • JBL-16 Optical Fiber Cleaver Blade
  • KL-6200 Fiber Master OTDR
  • KL-23F High Precision Fiber Cleaver
  • FIP-600V Fiber Optic Connector Inspection System
KL-500S FTTx Fusion Splicer
Category: Fusion Splicer
RequestRequest a quote consultOnline consultation Telephone+54 1135692774
Features

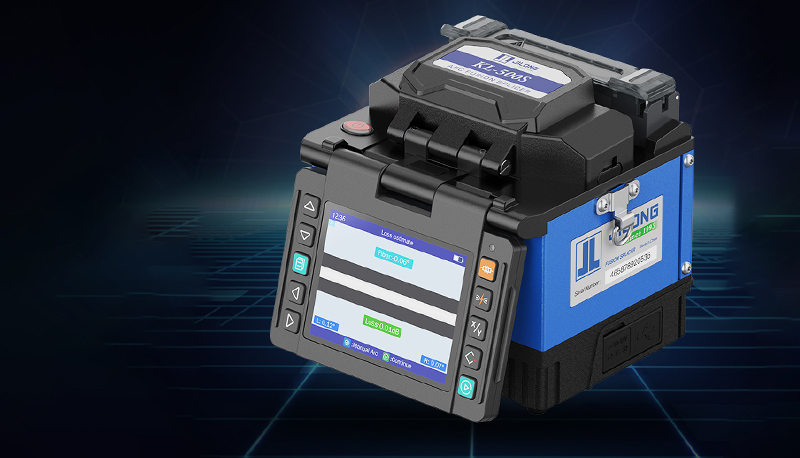

  • All-round FTTX Optical Fiber Fusion Splicer
    All-round FTTX Optical Fiber Fusion Splicer
    ● Cladding alignment
    ● Small size, portable, economical ideal machine
    ● Three-year warranty
  • FTTx optical fiber
    Various application scenarios
    ● FTTx optical fiber to the home
    ● Security monitoring
    ● Installation and maintenance engineering
  • fiber optic splicing machine
    Bearing upgrade double-layer cooling tank
    ● Double-layer design
    ● 2 times more carrying capacity than conventional
  • Expansibility - cutting knife console
    Expansibility - cutting knife console
    ● Applicable to a variety of cutting knives
    ● Cooling tank can be placed
    ● Highly scalable (this operating table needs to be purchased separately)
  • Tool-free installation of electrode rods
    Tool-free installation of electrode rods
    ● The life of the electrode is about 5000 times
    ● The electrode rod can be easily disassembled without tools
    ● When the welding times are too high and the loss is too large, please replace the electrode rod as soon as possible
  • 8s automatic welding
    8s automatic welding
    ●Cladding alignment
    ●Typical value (in single-mode fast mode)
    (Affected by battery usage status and operating environment)
  • 18s automatic heating
    18s automatic heating
    ● Heating time can be adjusted
    ● 40mm heat shrink tube in fast mode (affected by battery usage status and operating environment)

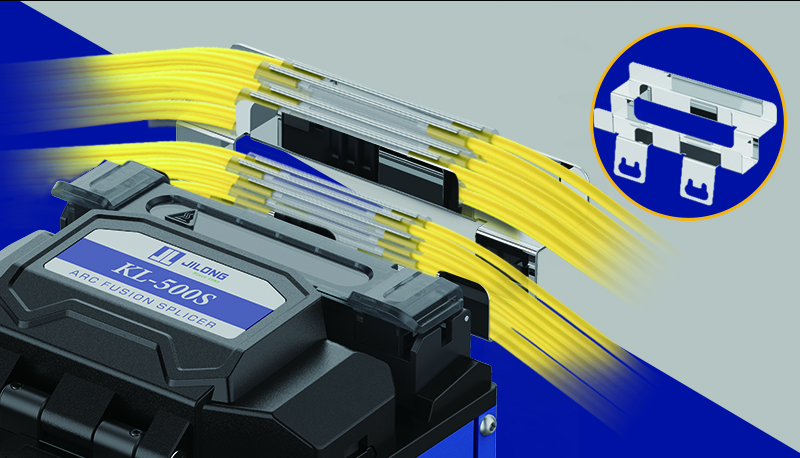

  • 3 in 1 Universal Fixture
    3 in 1 Universal Fixture
    ● jumper line
    ● pigtail
    ● leather line
    ● bare fiber
  • aerial work platform design
    aerial work platform design
    ● High-altitude operation platform design, convenient for high-altitude operations
    ● Competent for conventional operations in any environment on the ground
  • Humanized body design
    Humanized body design
    ● Mini body and lightweight design
    ● Small size and palm design
    ● Easy to carry and operate at any time
Product Specification


Splice Method :Active Clad-Alignment
Applicable Fibers :SM(ITU-T G.652&G.657) / MM(ITU-T   G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Compatible Fiber/Cable :0.25~3.0 mm / indoor flat cable
Fiber Holder :Replaceable
Fiber Diameter :Cladding: 80-150μm，Coating: 100~1000μm
Fiber Cleave Length :8~16 mm
Splice mode :Max 128 modes
Typical Splice Loss :SM: 0.03dB / MM: 0.01dB / DS: 0.04dB /   NZDS: 0.04dB / G.657: 0.03dB ★①
Return Loss :>>60dB
Splicing Time :SM Quick mode : 8 sec / SM Average: 10   Sec
Estimated Splice Loss :Available
Heating Time :Quick mode 18 sec.(SM G652 250μm 40mm   Sleeve) adjustable★②
Protection Sleeve Length20mm, 30mm, 40mm, 50mm, 60mm
Heat Programs:Max 32 modes
Battery4000mAh Battery Capacity, Typical 120   Cycles (Splice&Heat) per Charge ★③
Electrode Life5000 arcs （replaceable） ★④
Auto-start :Splice / Heating
Automatic Fiber Identification/
Automatic ARC IdentificationAutomatic arc calibration by air pressure   and temperature
Results Storage :The last 10,000 splice records and 2,000   result images
Tension Test1.96~2.25N
Operating ConditionAltitude: 0~5000m, 0~95% relative   humidity, -20~50°C, Max Wind 15m/s
Storage Condition0~95% relative humidity, -20~60°C
Display3.5” color high resolution (800 x 480)   display
Fiber MagnificationX, Y, XY, X/Y : 320X Magnification
Power Supply :AC 100-240V, DC 9-14V
TerminalUSB2.0
Weight1.06kg without battery / 1.35kg with   battery
Size130H x 113W x 126D mm

★①  With identical fibres(in room temperature). Measured by cut-back method relevant to ITU-T and IEC standards.

★②  0.25mm fiber,may vary depending on the battery status and operating environment.

★③  Splice & Heat cycles based on 40mm shrink tube.

★④  Electrode life may vary depending on the operating environment.


Product manual
Products Tutorials
    No data

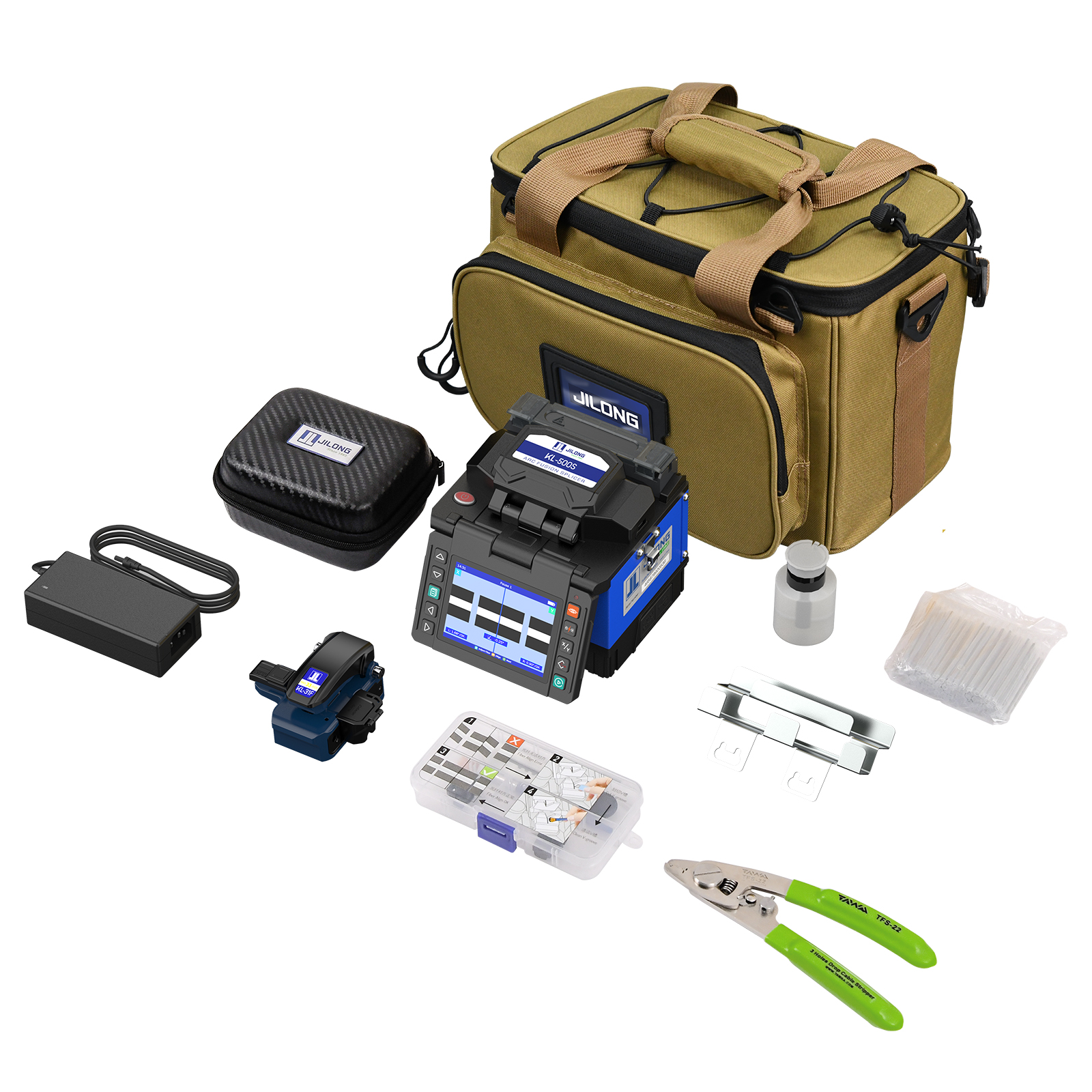

Product configuration
  • Fusion splicer
    Fusion splicer
